L-Shape Cubicle Layout Planner for Office Cubicles (CS-2769)

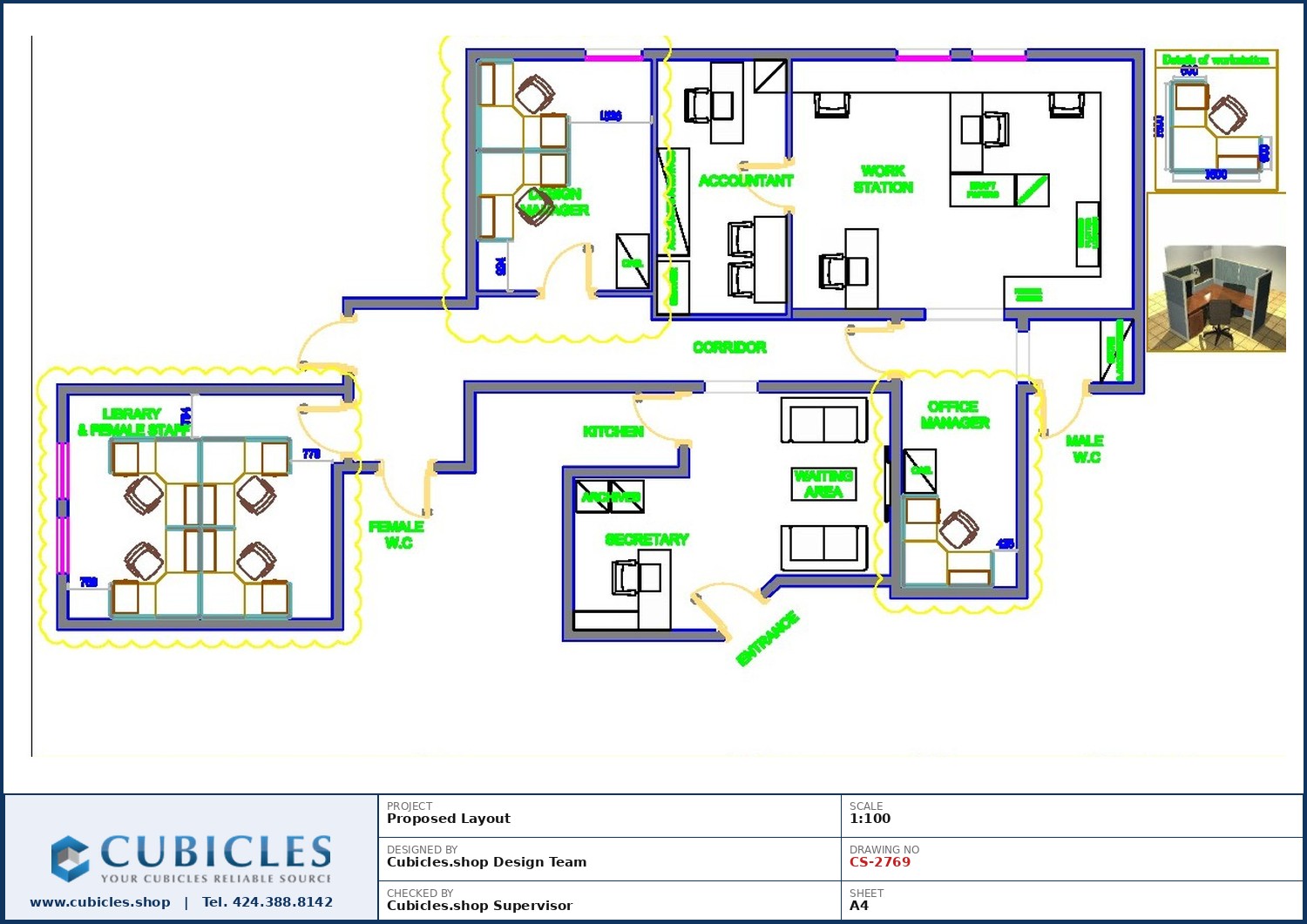

The L-shape is the workhorse of office cubicle layouts. This floor plan shows L-shape workstations arranged so each person gets a long primary work surface plus a return, without pushing the overall footprint out.

The plan is adaptable. Workstation size, panel height, glazed or fabric panels and storage are all specified per order, so the same arrangement can be built at a range of footprints and budgets.

Aisle widths are set for comfortable two-way circulation and to keep clear routes to exits, which matters as soon as the seat count climbs.

Best suited to general office work, administrative teams, finance and any role that needs a generous primary surface plus a return for a second monitor or paperwork.

We are a manufacturer-direct supplier of office cubicles, modular workstations and call center cubicles. Layout design and space planning come free with your order — share your floor plan and we will work to it.
