L-Shape Cubicle Layout & Office Floor Plan Design (CS-2768)

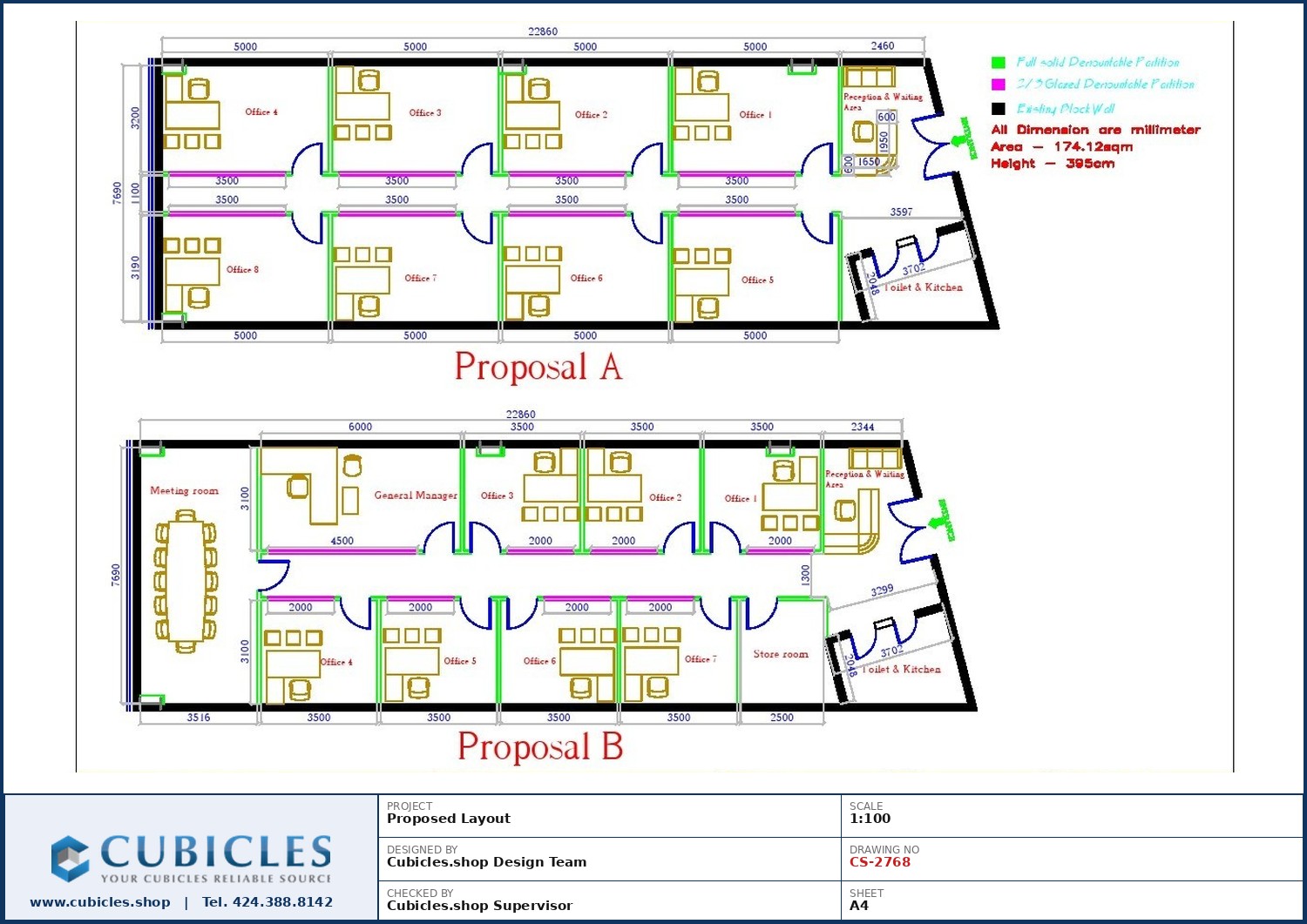

The L-shape is the workhorse of office cubicle layouts. This floor plan shows L-shape workstations arranged so each person gets a long primary work surface plus a return, without pushing the overall footprint out.

Panel heights, workstation sizes and finishes are all configurable. Common footprints include 5×5, 6×6 and 4×2 workstations, with panel heights typically between 51 and 66 inches depending on how much privacy and acoustic separation the space needs.

Storage is planned in from the start: mobile pedestals under the surface, overhead bins or shared filing at the end of each run, depending on the team.

Best suited to general office work, administrative teams, finance and any role that needs a generous primary surface plus a return for a second monitor or paperwork.

We are a manufacturer-direct supplier of office cubicles, modular workstations and call center cubicles. Layout design and space planning come free with your order — share your floor plan and we will work to it.
