U Shaped Office Desk Buying Guide: Sizes, Layouts, Costs and Fit

Ask anyone who has worked at one and they will tell you the same thing: a U shaped office desk changes how a day feels. Everything is within a quarter turn of the chair. The monitor stays on the main run, the paperwork lives on the return, the phone and the files sit on the bridge, and nothing has to be moved to make room for something else. It is the closest thing office furniture has to a cockpit.

It is also the configuration people most often buy wrong – too deep for the room, too shallow for the work, or with the return on the side that fights the door. This guide covers how a U shaped office desk is actually built, which dimensions to specify, who it suits, what it costs, and how to tell whether your room can take one.

What a U shaped office desk is made of

Despite the name, it is rarely one piece of furniture. A U shaped office desk is almost always three components that connect into a single surface.

The main desk is the primary run, typically 60 to 72 inches wide and 30 inches deep. This is where the monitor, the keyboard and the person sit. The bridge is the connecting section between the main desk and the credenza, usually 42 to 48 inches long and 24 inches deep. It carries the phone, a printer, or a second monitor. The credenza or back return runs parallel to the main desk, commonly 60 to 72 inches wide and 20 to 24 inches deep, and it is where storage and layout space live.

Because these are three separate parts, a U shaped office desk is reversible. The same components build a left-hand or right-hand U depending on which side the bridge attaches – a detail worth deciding before you order, not after.

Standard sizes and what they need from the room

The single most useful number is the overall footprint including the chair zone. A U shaped office desk needs clear space behind the main run for the chair to roll, and that space is inside the U, not outside it.

The chair zone inside the U should be at least 36 inches from the front edge of the main desk to the front edge of the credenza, and 42 inches is much more comfortable. Below 36 inches the chair collides with the credenza every time someone turns, which is precisely the problem a U shaped office desk is supposed to solve.

Who a U shaped office desk actually suits

This configuration rewards particular kinds of work and wastes space on others. It is worth being honest about which side of the line a role falls on.

It works extremely well for roles that juggle several streams at once: office managers, accountants during close, estimators working from drawings, schedulers, anyone running two or three monitors, and anyone who still handles significant paper. It also suits executives who take meetings at the desk, because the credenza gives a clean surface that is not the working surface.

It works poorly for hot-desking and shared seating, where the second person inherits the first person’s clutter across three surfaces. It is also usually wrong for pure phone-and-screen roles such as inbound support, where a 4 ft by 2 ft bench station does the same job in a quarter of the floor area.

It is a judgement call for hybrid staff in the office two or three days a week. If the desk is shared on the other days, the storage in the credenza becomes contested territory. If it is genuinely theirs, the extra surface earns its keep.

Left-hand or right-hand: how to decide in thirty seconds

Sit in the chair, facing the main desk. If the bridge and credenza extend to your left, it is a left-hand U. To your right, a right-hand U. Three things should drive the choice.

First, the door. You generally want to face it or see it from the corner of your eye, not sit with your back to it. Second, the window. Putting the credenza under the window keeps daylight off the monitor and stops the glare that has people closing blinds at 10am. Third, the power. The run that sits against a wall should be the run nearest the outlets, because that is where the power strip and the cable management will live.

A well-made U is reversible on site, but reversing one after installation usually means dismantling the modesty panel and re-drilling grommets, so it is a decision better made on paper.

Materials, edges and the parts that fail first

Almost all commercial U shaped office desk product is built from thermally fused laminate over particleboard or MDF, and that is not a compromise – it is the right material for the job. What separates a desk that lasts fifteen years from one that looks tired in three is not the surface, it is the edge and the frame.

Edge banding is where failure starts. A 3mm PVC or ABS banded edge survives chair arms and cart impacts; a thin foil or paper edge chips within a year on any corner that faces traffic. Run a thumbnail along the edge of a sample: if you can feel a seam lift, walk away.

Core thickness should be 1 inch or more on the main desk. Three quarter inch tops sag over a 66 inch unsupported span, and the sag is permanent.

Grommets and cable paths matter more than they used to. Look for at least two grommets on the main desk and one on the credenza, plus a route from the desk surface down to floor level that does not require drilling the modesty panel.

Levellers are the unglamorous detail that decides whether the three components sit flush. Commercial-grade levellers with at least half an inch of travel handle the fact that almost no office floor is actually flat.

What a U shaped office desk costs

Two things drive the spread more than anything else: whether the tops are hung from a panel system or supported on their own legs, and whether you are paying for a dealer margin. Buying manufacturer-direct removes a layer that commonly adds 30 to 50 percent to a commercial desk with no change to the product.

Freestanding U versus a U inside a cubicle

A freestanding U shaped office desk is a piece of furniture: it stands on its own legs, it can go in a private office, and it moves easily. A U built inside a panel system hangs from the panels, shares structure with the neighbouring stations, and routes power through the panel raceway.

For one or two people in private offices, freestanding wins on simplicity. From roughly four people upward on an open floor, the panel-hung version is cheaper per head and looks far more finished, because the cabling disappears.

A specification checklist before you order

Frequently asked questions about the U shaped office desk

How much space does a U shaped office desk need?

Plan on a room of at least 11 by 10 feet for a standard configuration, or 10 by 9 feet for a compact one. The desk itself occupies roughly 9.5 by 6.5 feet; the rest is chair movement and the ability to get in and out.

Is a U shaped desk better than an L shaped desk?

It is better if you need the third surface and the room can take it. If you are in a space under about 100 square feet, an L-shape gives most of the benefit and leaves the room usable. The U earns its footprint when there is genuine paper, a second device, or meetings at the desk.

Can a U shaped office desk be reversed after delivery?

On commercial product, usually yes – the bridge attaches to either side. Expect to move the modesty panel and possibly re-site a grommet. Confirm reversibility before purchase if you are not certain of the handing.

What height should it be?

29 to 30 inches is the commercial standard for a fixed-height desk. If you want sit-stand capability, it is normally applied to the main run only, with the bridge and credenza staying fixed; a fully height-adjustable U is possible but roughly triples the cost.

Will it fit inside a cubicle?

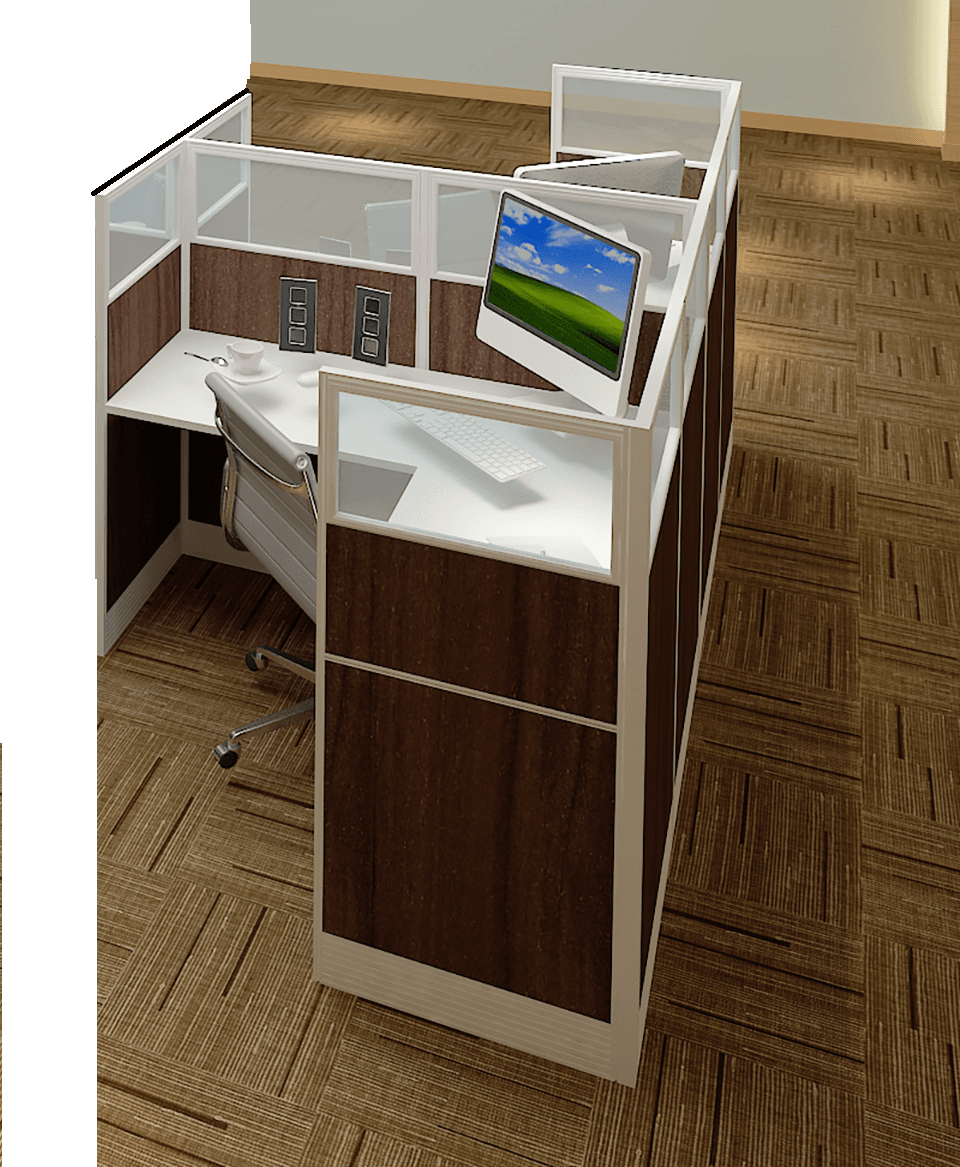

Yes. A U layout fits comfortably in an 8×8 station and can be made to work in a 6×6 with 24 inch surfaces. Our guide to cubicle desks and worksurfaces covers how tops hang from panels.

How long does delivery take?

In-stock commercial product typically ships in one to three weeks. Custom sizes and veneer run six to twelve. If a quote promises a custom U in ten days, ask what is actually being customised.
