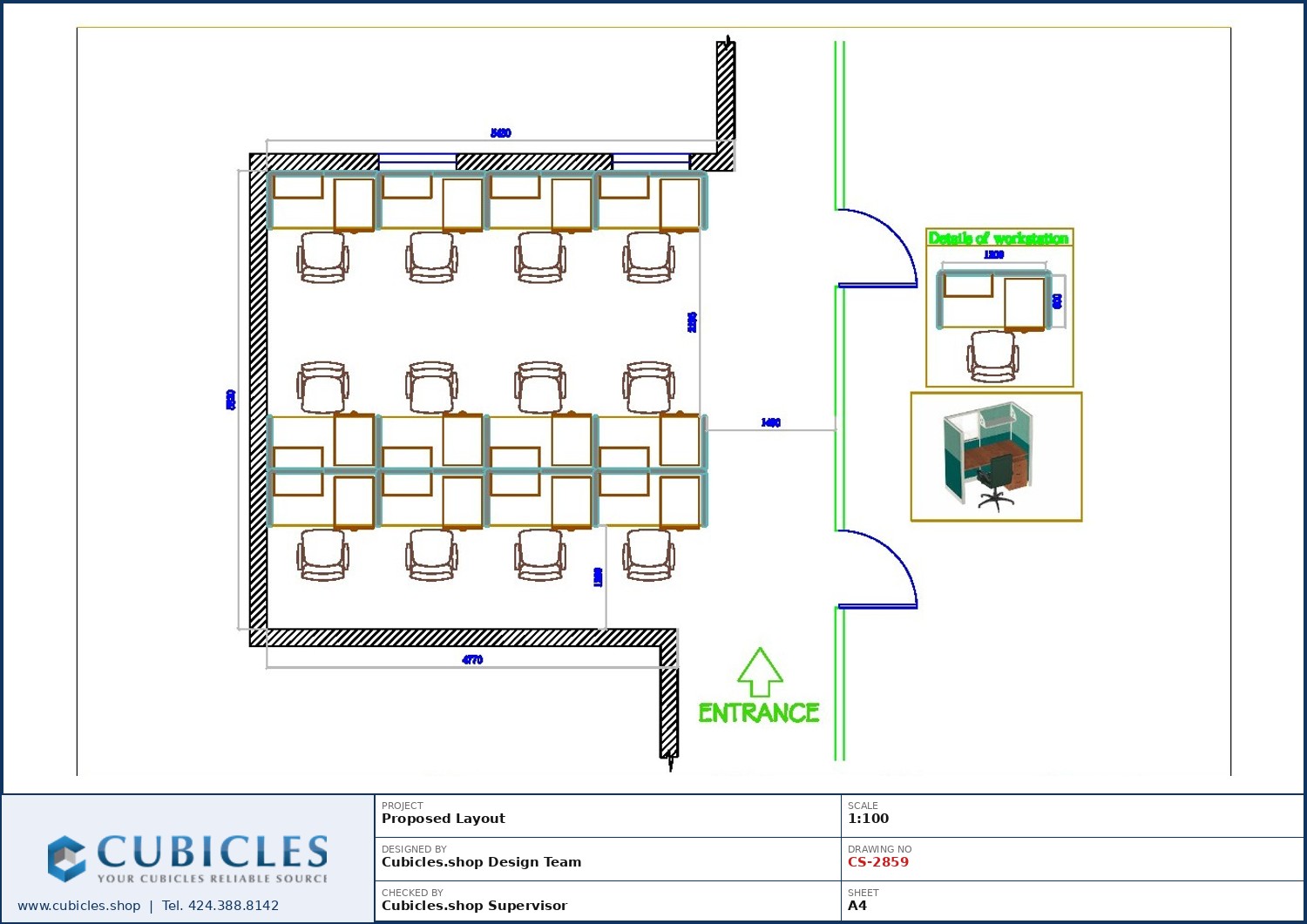

U-Shape Cubicle Layout & Office Floor Plan Design (CS-2859)

A U-shape workstation wraps three surfaces around the user. This cubicle layout shows how U-shape stations can be set out where people juggle paperwork, multiple monitors and reference material at once.

Panel heights, workstation sizes and finishes are all configurable. Common footprints include 5×5, 6×6 and 4×2 workstations, with panel heights typically between 51 and 66 inches depending on how much privacy and acoustic separation the space needs.

Power and data routing is planned with the layout, not after it — panel raceways carry cabling to each workstation so there are no trailing leads across walkways.

Best suited to supervisors, design and engineering staff, accounts teams and anyone working across several surfaces at once.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
