Private Office Workstation Layout & Cubicle Dimensions (CS-2790)

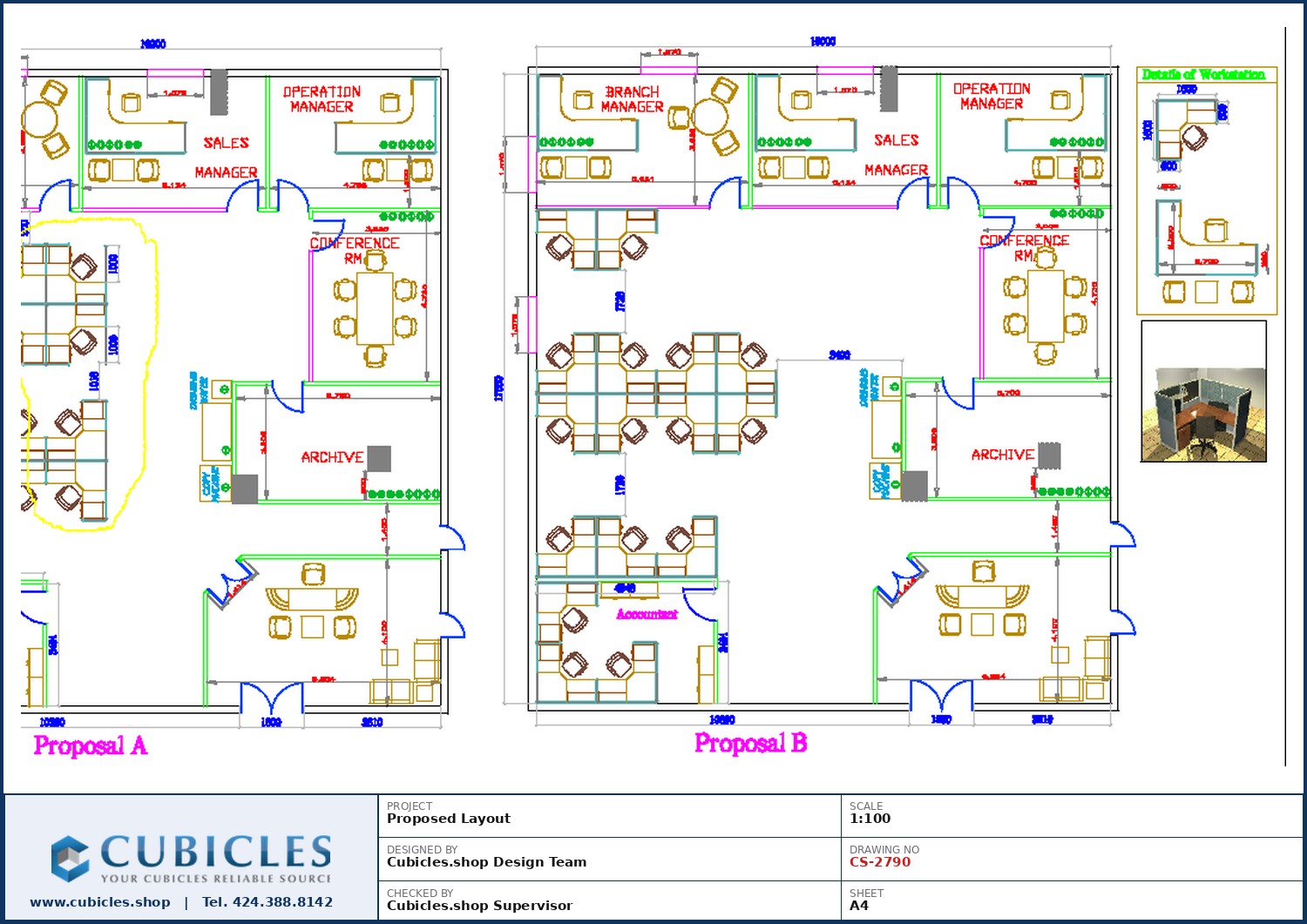

Some roles need walls. This private office cubicle layout shows enclosed and high-panel workstations placed for confidentiality and quiet, while staying part of the wider floor plan rather than cut off from it.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Panel glazing is used selectively in this plan — clear or frosted tops where light needs to travel, solid fabric where acoustic separation matters more.

Best suited to managers, HR, legal, finance and any role handling confidential conversations or sensitive documents.

Send us your dimensions and we will produce a layout for your space at no charge. Cubicles Shop is a manufacturer-direct supplier of new office cubicles and modular workstations, with design support on every order.
