Office Cubicle Layout Planner & Design Template (CS-2656)

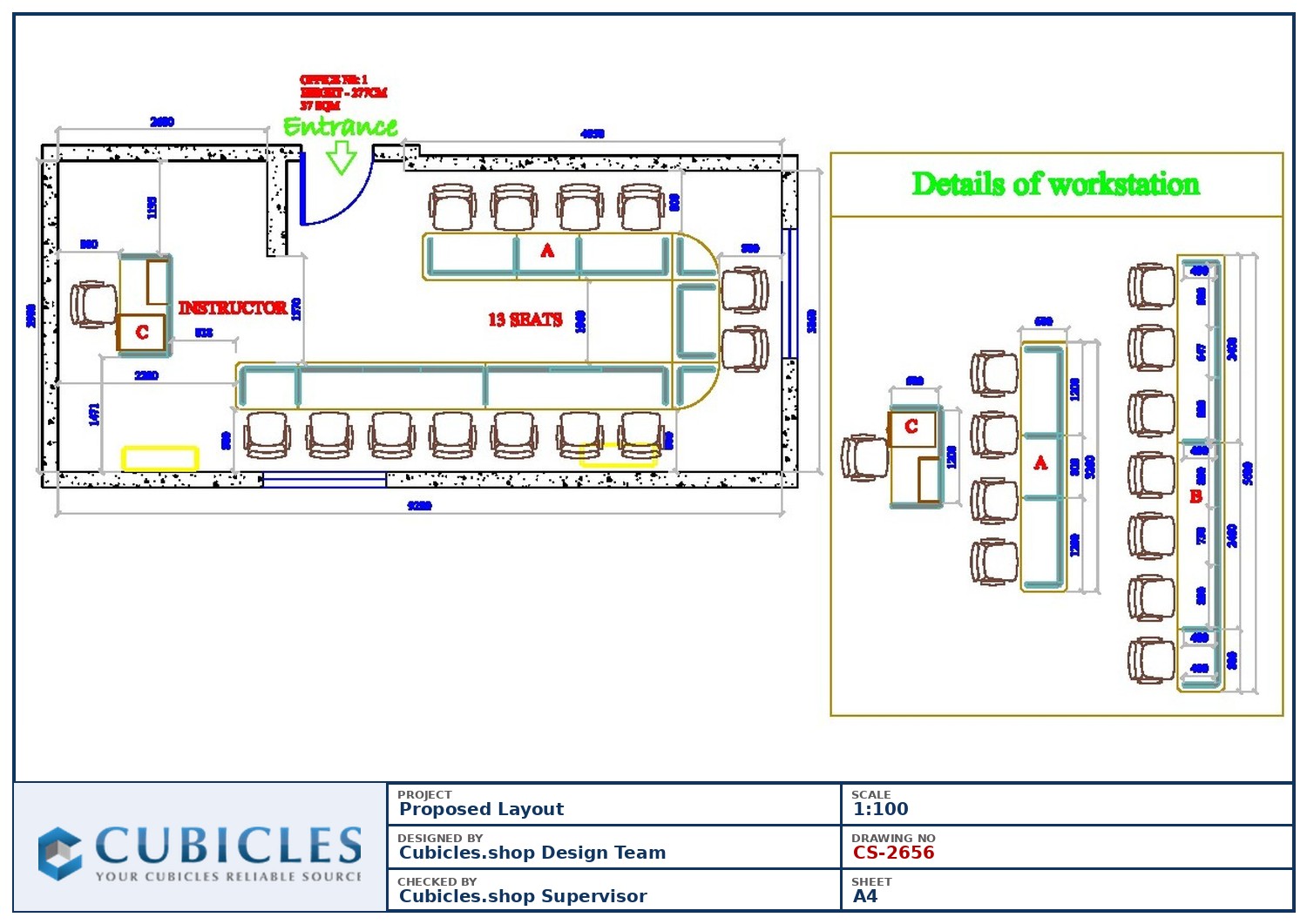

This office cubicle layout shows how modular workstations can be arranged across a floor plate — panel runs, workstation footprints, aisles and circulation resolved into one workable plan.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Worksurface orientation is set so screens avoid direct glare from windows and overhead lighting, a detail that is easy to lose when a plan is drawn to seat count alone.

Best suited to general office environments, mixed teams and organisations planning a new cubicle installation or reconfiguring an existing one.

Send us your dimensions and we will produce a layout for your space at no charge. Cubicles Shop is a manufacturer-direct supplier of new office cubicles and modular workstations, with design support on every order.
