Office Cubicle CAD Floor Plan & Layout Drawing (CS-2760)

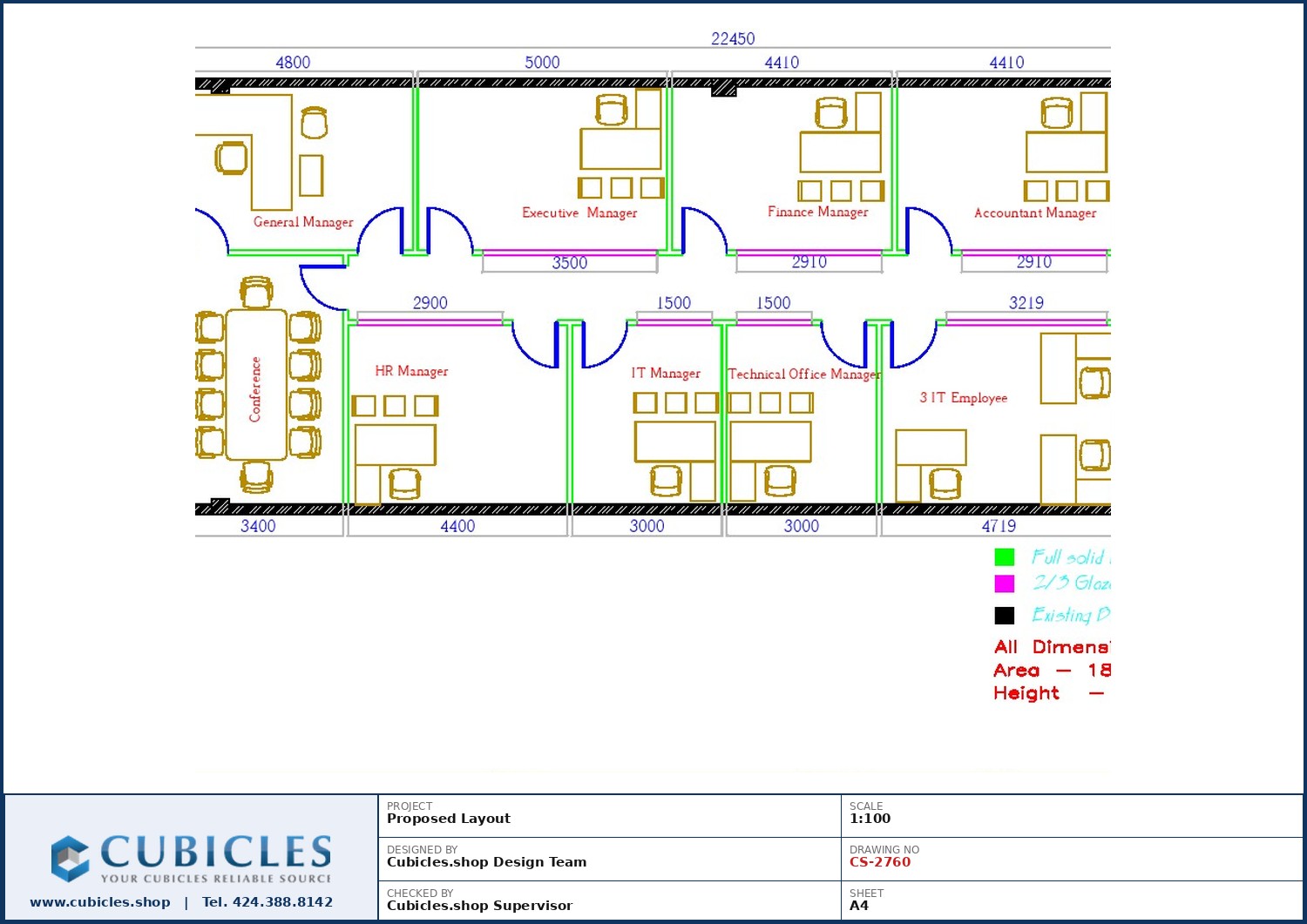

This is a CAD-drawn office cubicle floor plan, dimensioned and drawn to scale. It shows panel runs, workstation footprints and circulation in the form a contractor or facilities team can work from directly.

Panel heights, workstation sizes and finishes are all configurable. Common footprints include 5×5, 6×6 and 4×2 workstations, with panel heights typically between 51 and 66 inches depending on how much privacy and acoustic separation the space needs.

Power and data routing is planned with the layout, not after it — panel raceways carry cabling to each workstation so there are no trailing leads across walkways.

Best suited to contractors, architects, facilities managers and anyone who needs a dimensioned drawing rather than a concept sketch.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
