CAD Cubicle Layout Plan & Office Space Planning (CS-2755)

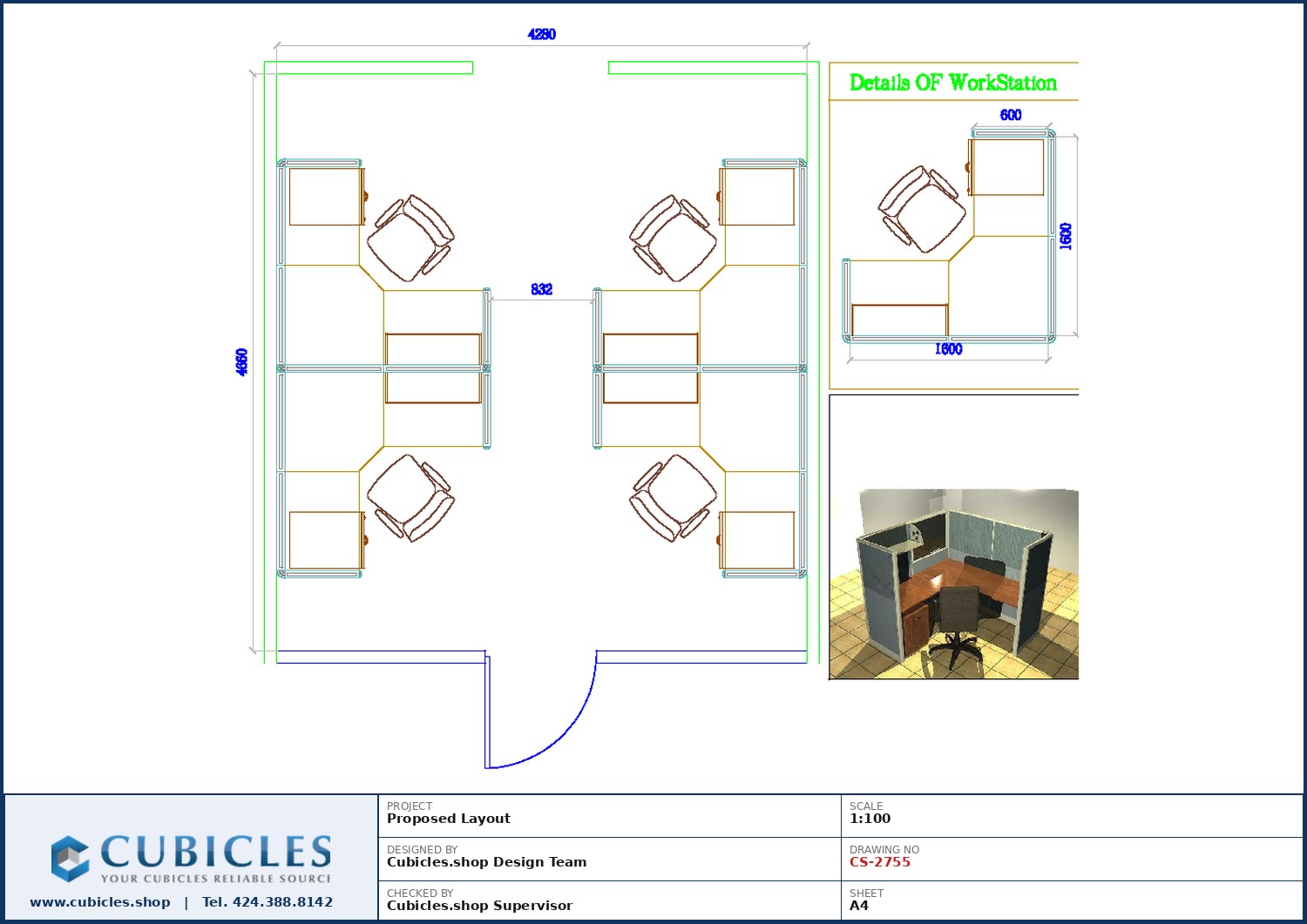

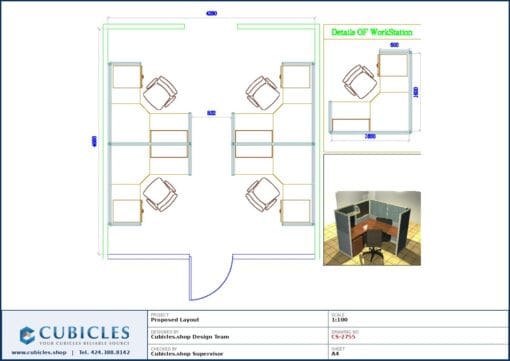

This is a CAD-drawn office cubicle floor plan, dimensioned and drawn to scale. It shows panel runs, workstation footprints and circulation in the form a contractor or facilities team can work from directly.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Aisle widths are set for comfortable two-way circulation and to keep clear routes to exits, which matters as soon as the seat count climbs.

Best suited to contractors, architects, facilities managers and anyone who needs a dimensioned drawing rather than a concept sketch.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
