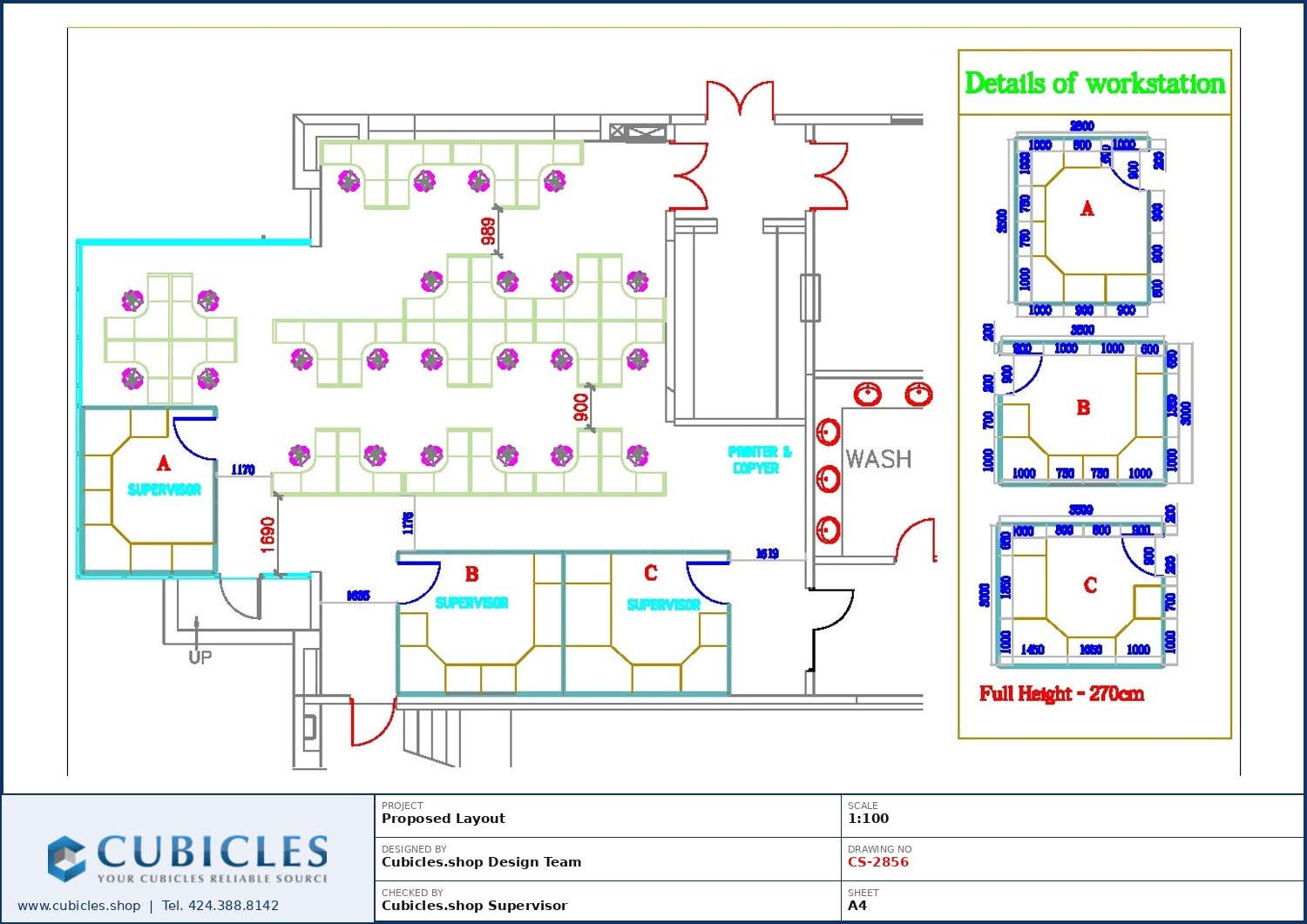

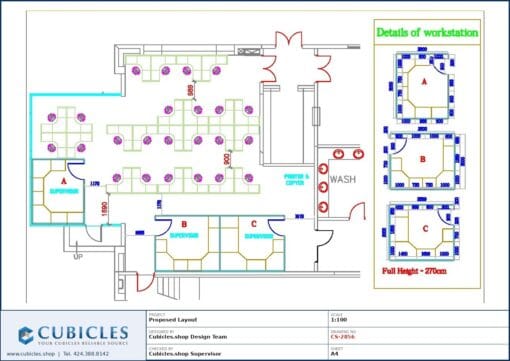

U-Shape Workstation Floor Plan & Cubicle Dimensions (CS-2856)

A U-shape workstation wraps three surfaces around the user. This cubicle layout shows how U-shape stations can be set out where people juggle paperwork, multiple monitors and reference material at once.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Storage is planned in from the start: mobile pedestals under the surface, overhead bins or shared filing at the end of each run, depending on the team.

Best suited to supervisors, design and engineering staff, accounts teams and anyone working across several surfaces at once.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
