Office Cubicle Floor Plan & Cubicle Dimensions (CS-2651)

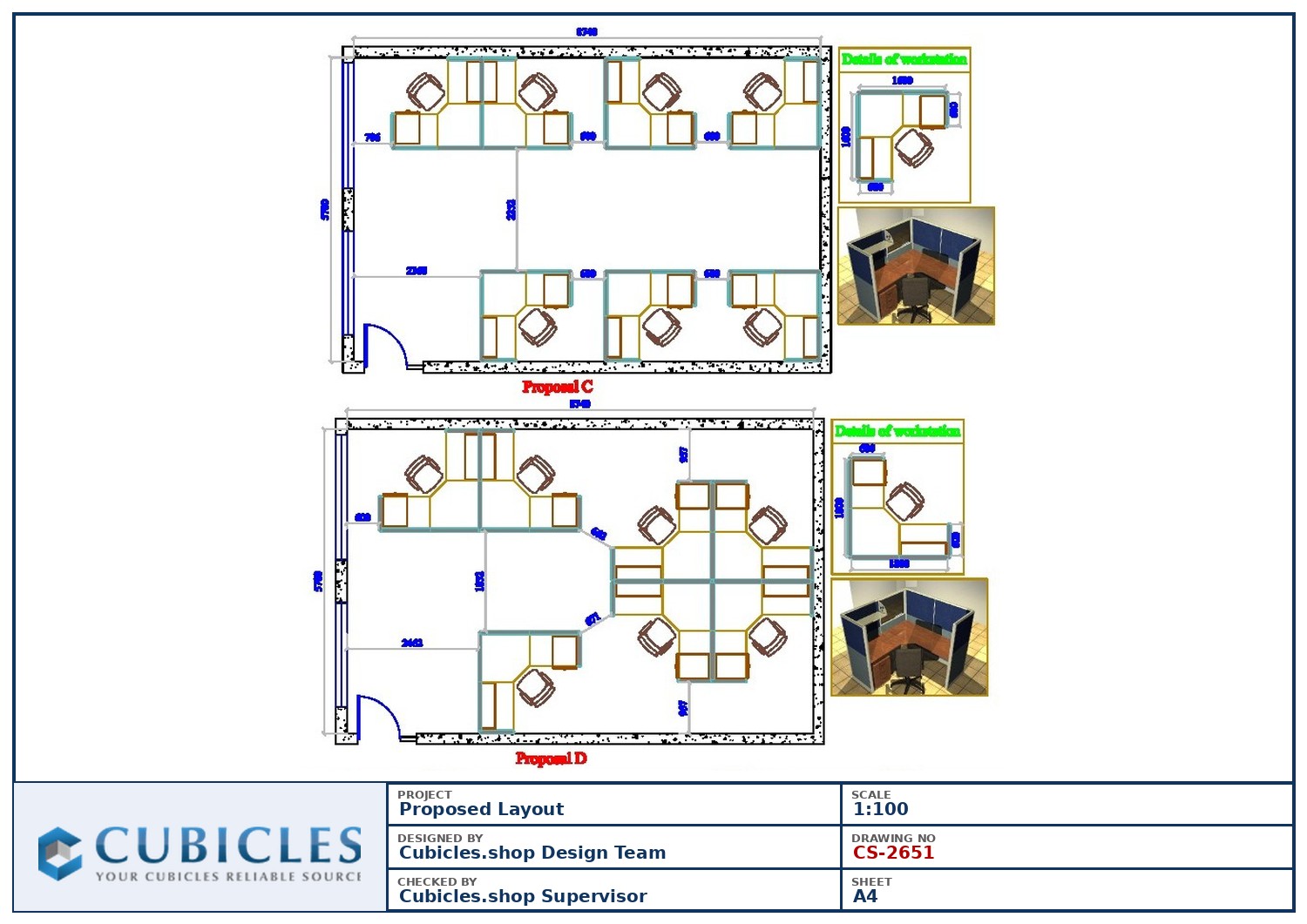

This office cubicle layout shows how modular workstations can be arranged across a floor plate — panel runs, workstation footprints, aisles and circulation resolved into one workable plan.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Panel glazing is used selectively in this plan — clear or frosted tops where light needs to travel, solid fabric where acoustic separation matters more.

Best suited to general office environments, mixed teams and organisations planning a new cubicle installation or reconfiguring an existing one.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
