Office Cubicle Floor Plan & Cubicle Dimensions (CS-2620)

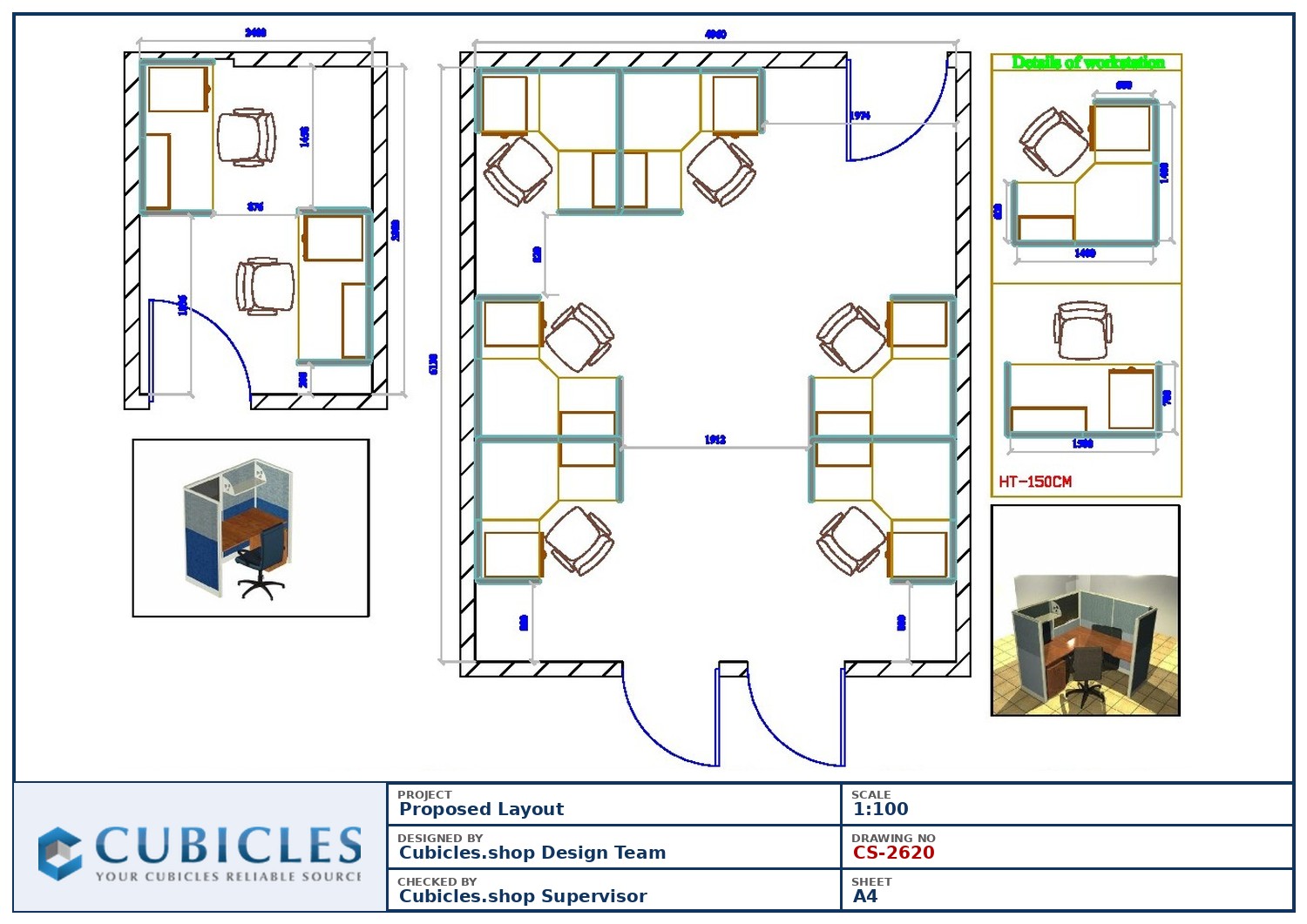

This office cubicle layout shows how modular workstations can be arranged across a floor plate — panel runs, workstation footprints, aisles and circulation resolved into one workable plan.

Panel heights, workstation sizes and finishes are all configurable. Common footprints include 5×5, 6×6 and 4×2 workstations, with panel heights typically between 51 and 66 inches depending on how much privacy and acoustic separation the space needs.

Worksurface orientation is set so screens avoid direct glare from windows and overhead lighting, a detail that is easy to lose when a plan is drawn to seat count alone.

Best suited to general office environments, mixed teams and organisations planning a new cubicle installation or reconfiguring an existing one.

Every order includes space planning. Cubicles Shop supplies new, manufacturer-direct office cubicles and modular workstations across the United States, drawing each layout to the customer’s own floor dimensions.
