Office Cubicle Layout Planner & Design Template (CS-2748)

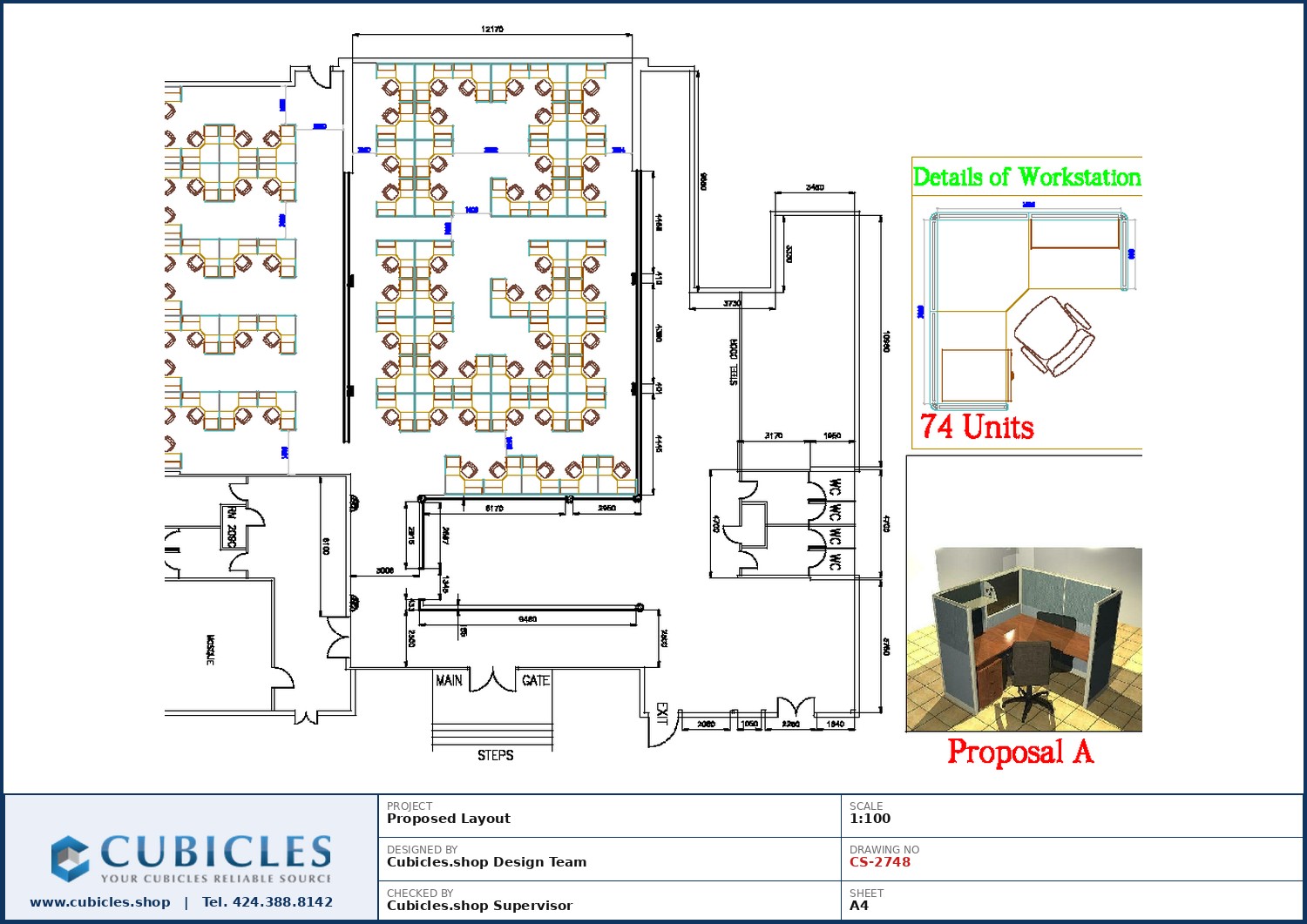

This office cubicle layout shows how modular workstations can be arranged across a floor plate — panel runs, workstation footprints, aisles and circulation resolved into one workable plan.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Storage is planned in from the start: mobile pedestals under the surface, overhead bins or shared filing at the end of each run, depending on the team.

Best suited to general office environments, mixed teams and organisations planning a new cubicle installation or reconfiguring an existing one.

Send us your dimensions and we will produce a layout for your space at no charge. Cubicles Shop is a manufacturer-direct supplier of new office cubicles and modular workstations, with design support on every order.
