Office Cubicle Space Planning & Layout Plan (CS-2640)

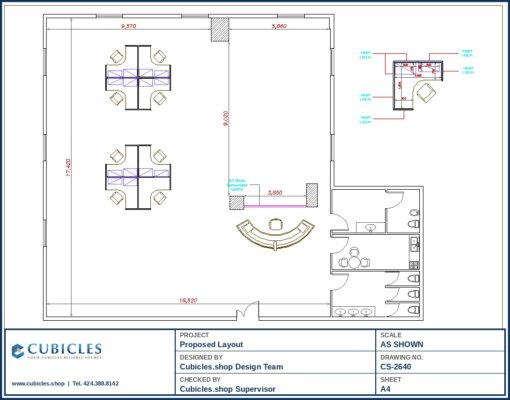

This office cubicle layout shows how modular workstations can be arranged across a floor plate — panel runs, workstation footprints, aisles and circulation resolved into one workable plan.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Power and data routing is planned with the layout, not after it — panel raceways carry cabling to each workstation so there are no trailing leads across walkways.

Best suited to general office environments, mixed teams and organisations planning a new cubicle installation or reconfiguring an existing one.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
