Office Cubicle Layout Design & Space Planning (CS-2734)

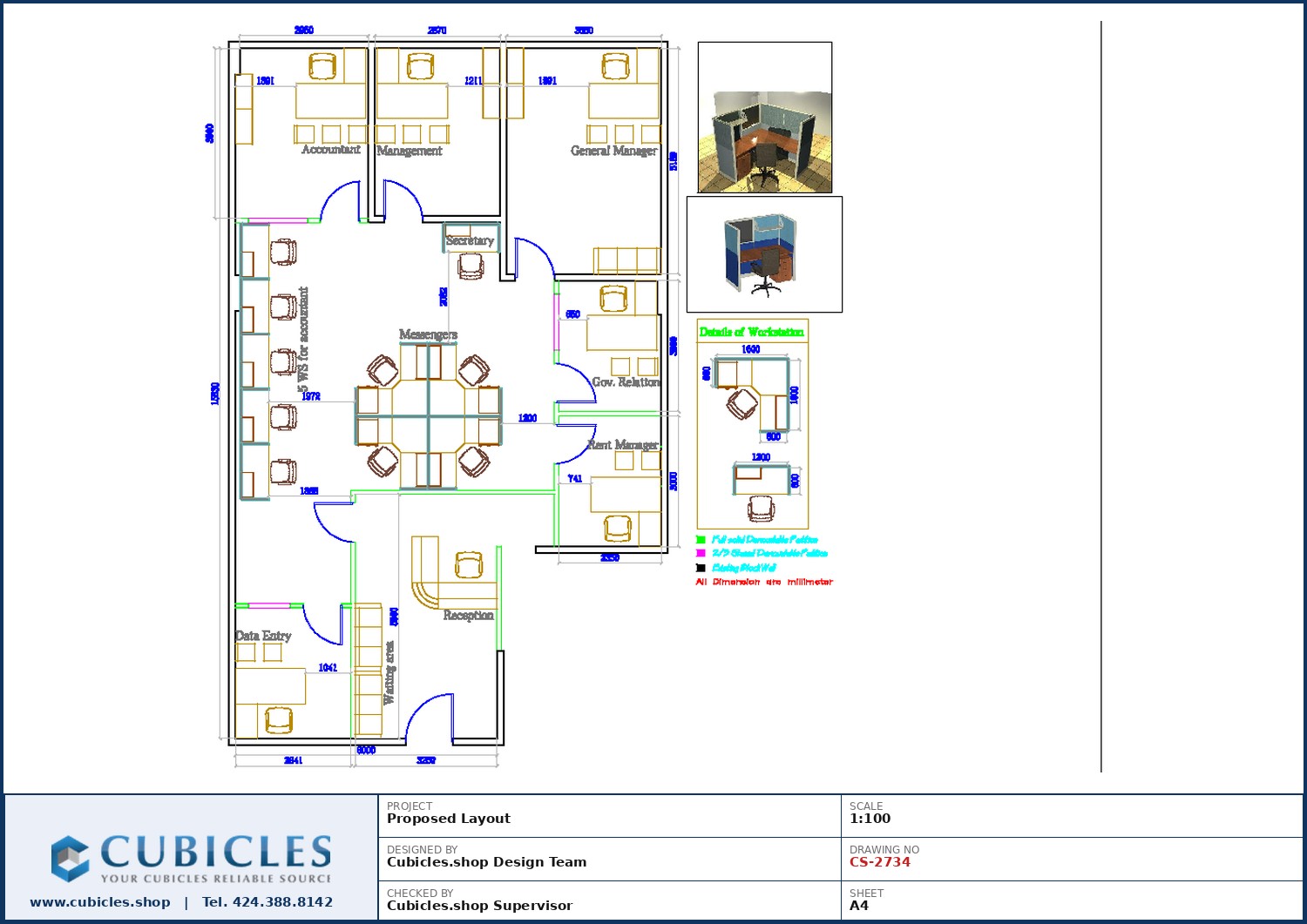

Every floor plate is different, which is why we draw layouts rather than sell templates. This custom office cubicle layout is an example of the design work we produce for customers planning a cubicle installation.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Worksurface orientation is set so screens avoid direct glare from windows and overhead lighting, a detail that is easy to lose when a plan is drawn to seat count alone.

Best suited to anyone at the planning stage who wants their own floor drawn up before committing to a cubicle order.

We are a manufacturer-direct supplier of office cubicles, modular workstations and call center cubicles. Layout design and space planning come free with your order — share your floor plan and we will work to it.
