Custom Cubicle Layout Planner & Floor Plan Design (CS-2733)

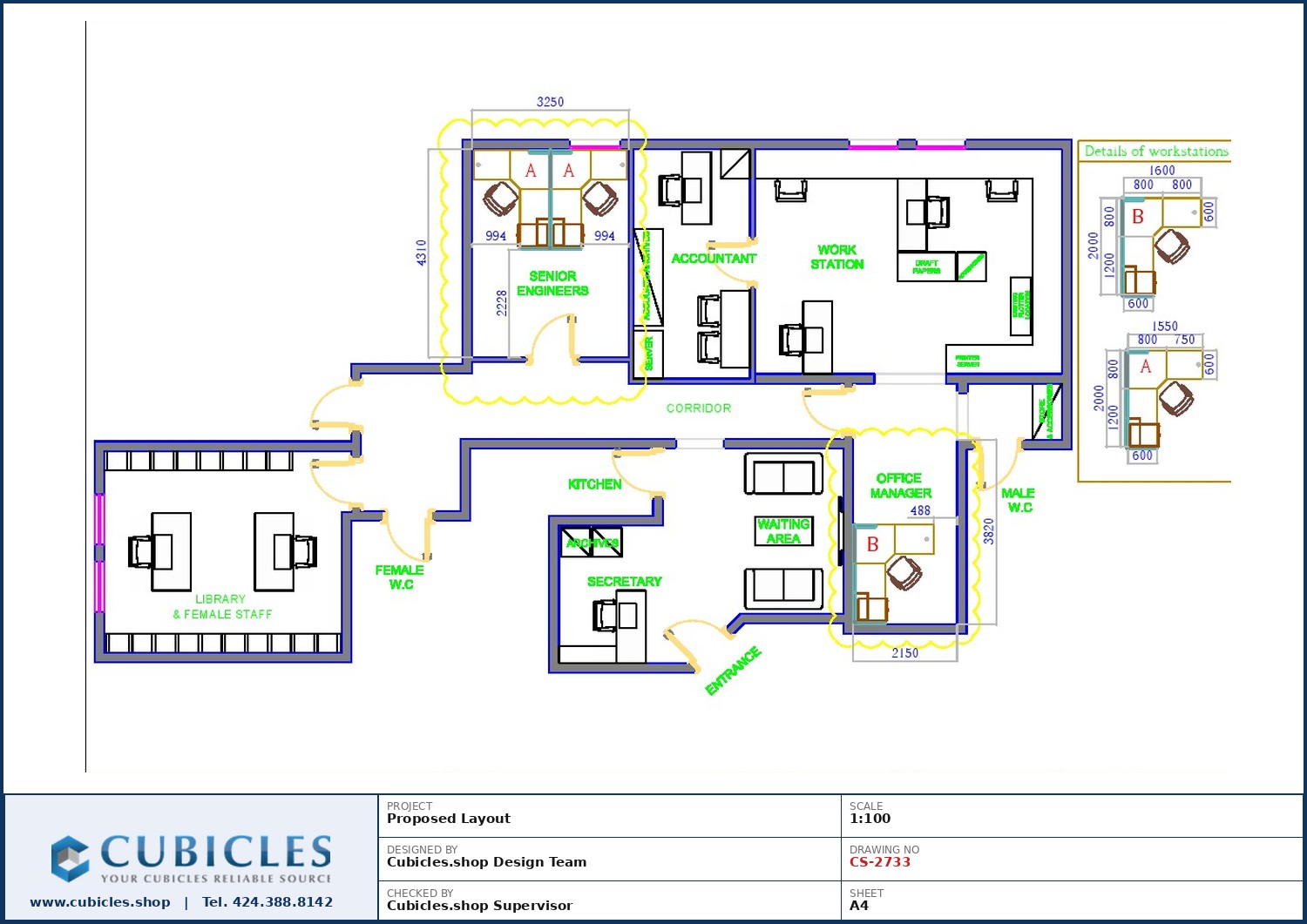

Every floor plate is different, which is why we draw layouts rather than sell templates. This custom office cubicle layout is an example of the design work we produce for customers planning a cubicle installation.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Shared equipment — printers, plotters, supply storage — is positioned so no desk sits directly beside a high-traffic machine.

Best suited to anyone at the planning stage who wants their own floor drawn up before committing to a cubicle order.

Every order includes space planning. Cubicles Shop supplies new, manufacturer-direct office cubicles and modular workstations across the United States, drawing each layout to the customer’s own floor dimensions.
