Office Cubicle Layout Design & Space Planning (CS-2724)

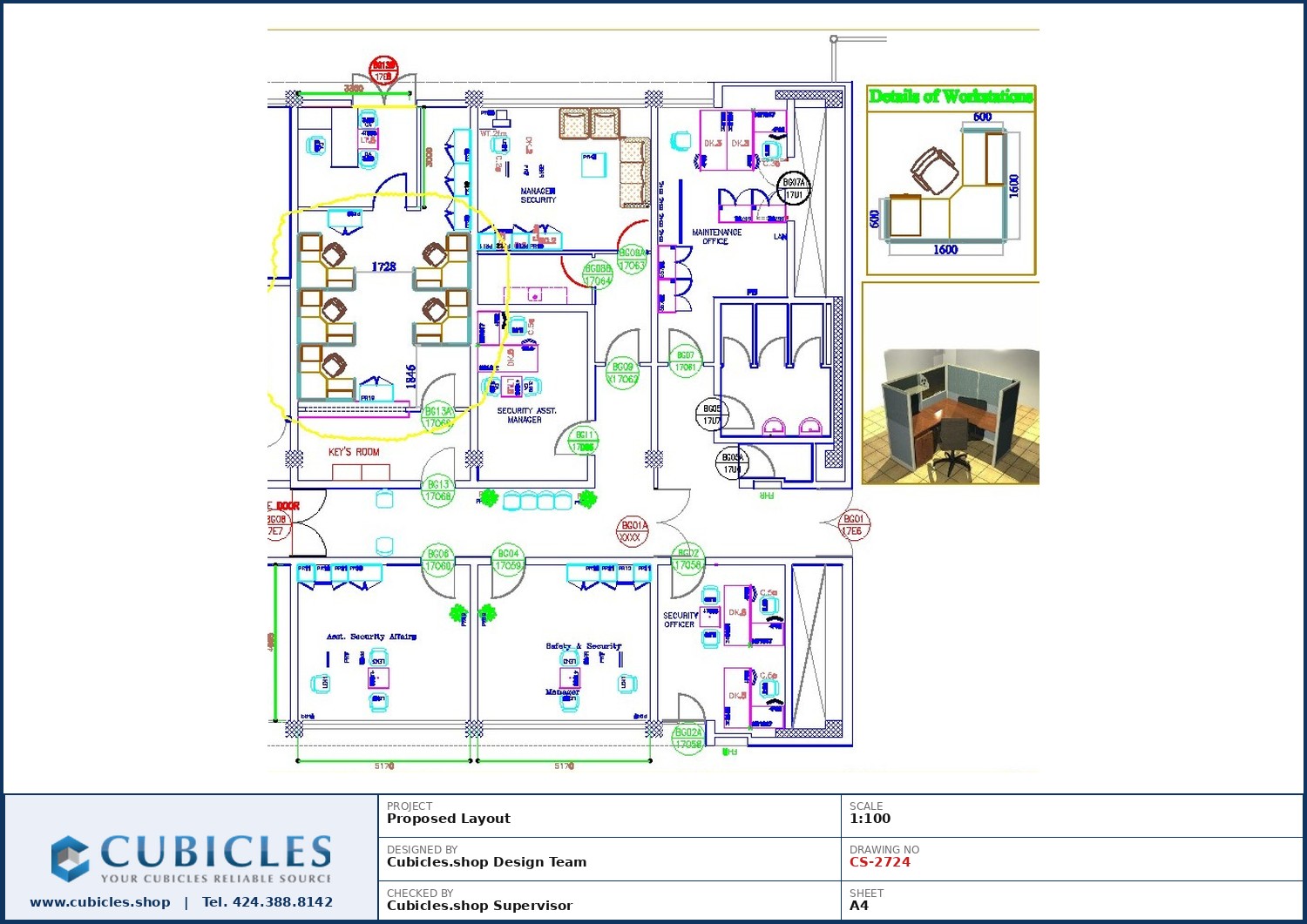

Every floor plate is different, which is why we draw layouts rather than sell templates. This custom office cubicle layout is an example of the design work we produce for customers planning a cubicle installation.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Shared equipment — printers, plotters, supply storage — is positioned so no desk sits directly beside a high-traffic machine.

Best suited to anyone at the planning stage who wants their own floor drawn up before committing to a cubicle order.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
