Custom Cubicle Layout Planner & Floor Plan Design (CS-2723)

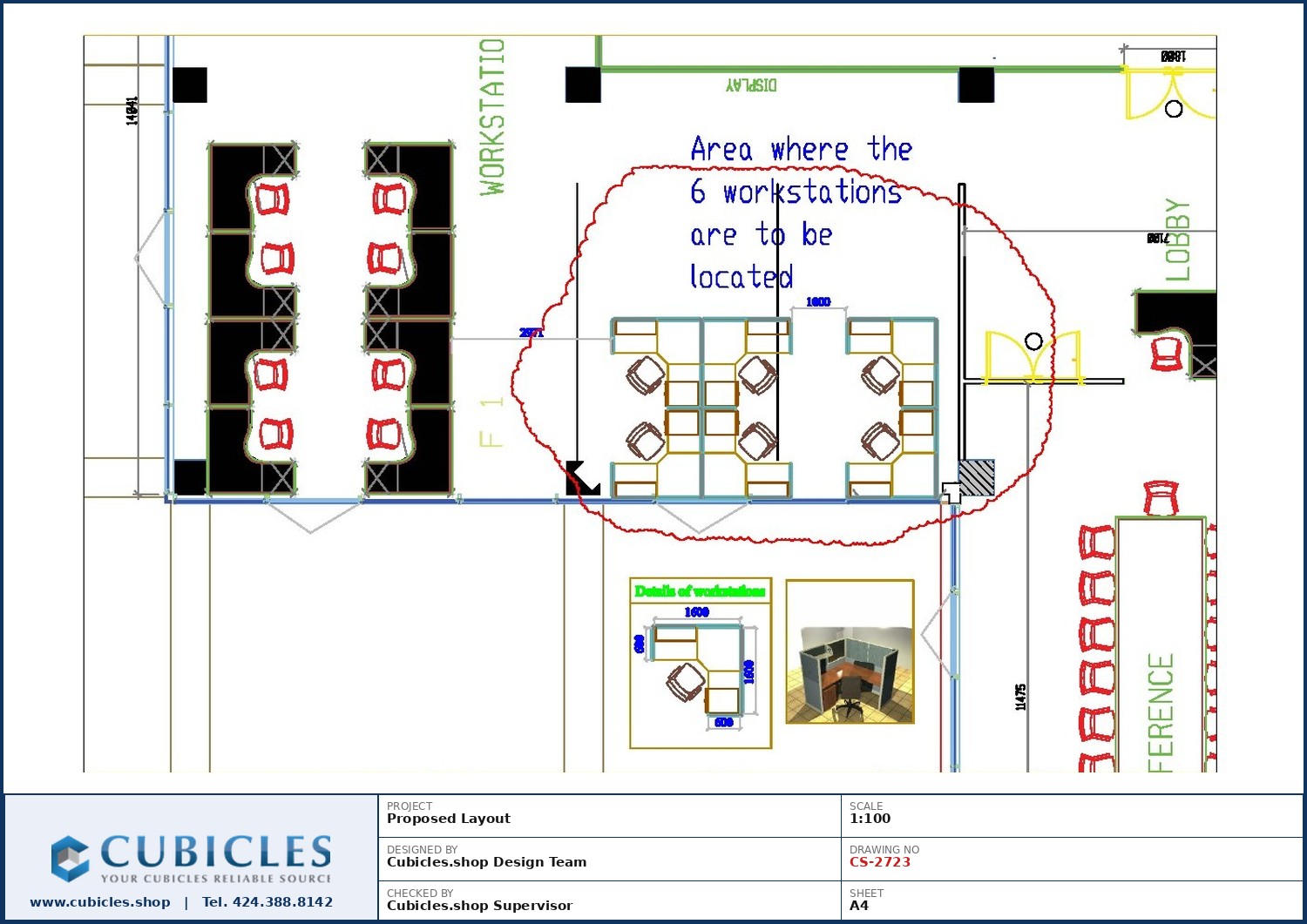

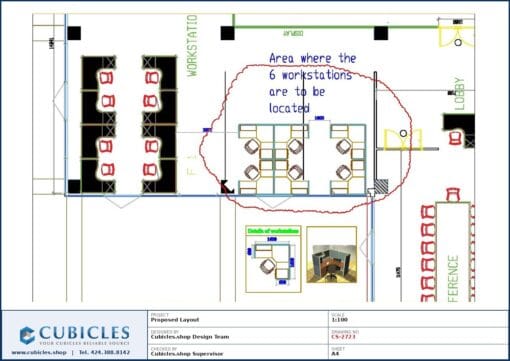

Every floor plate is different, which is why we draw layouts rather than sell templates. This custom office cubicle layout is an example of the design work we produce for customers planning a cubicle installation.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Power and data routing is planned with the layout, not after it — panel raceways carry cabling to each workstation so there are no trailing leads across walkways.

Best suited to anyone at the planning stage who wants their own floor drawn up before committing to a cubicle order.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
