Office Cubicle Layout Design & Space Planning (CS-2718)

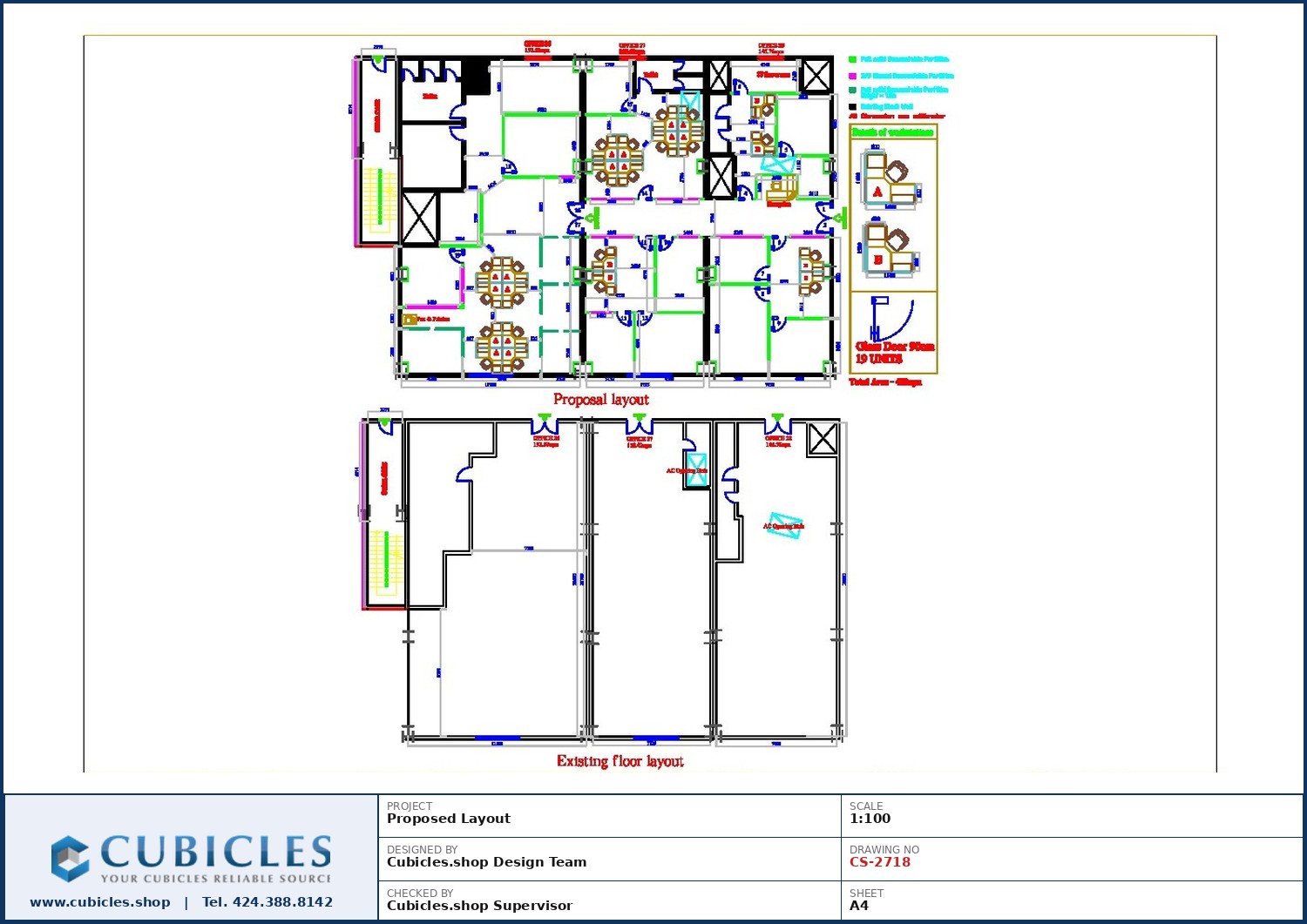

Every floor plate is different, which is why we draw layouts rather than sell templates. This custom office cubicle layout is an example of the design work we produce for customers planning a cubicle installation.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Panel glazing is used selectively in this plan — clear or frosted tops where light needs to travel, solid fabric where acoustic separation matters more.

Best suited to anyone at the planning stage who wants their own floor drawn up before committing to a cubicle order.

We are a manufacturer-direct supplier of office cubicles, modular workstations and call center cubicles. Layout design and space planning come free with your order — share your floor plan and we will work to it.
