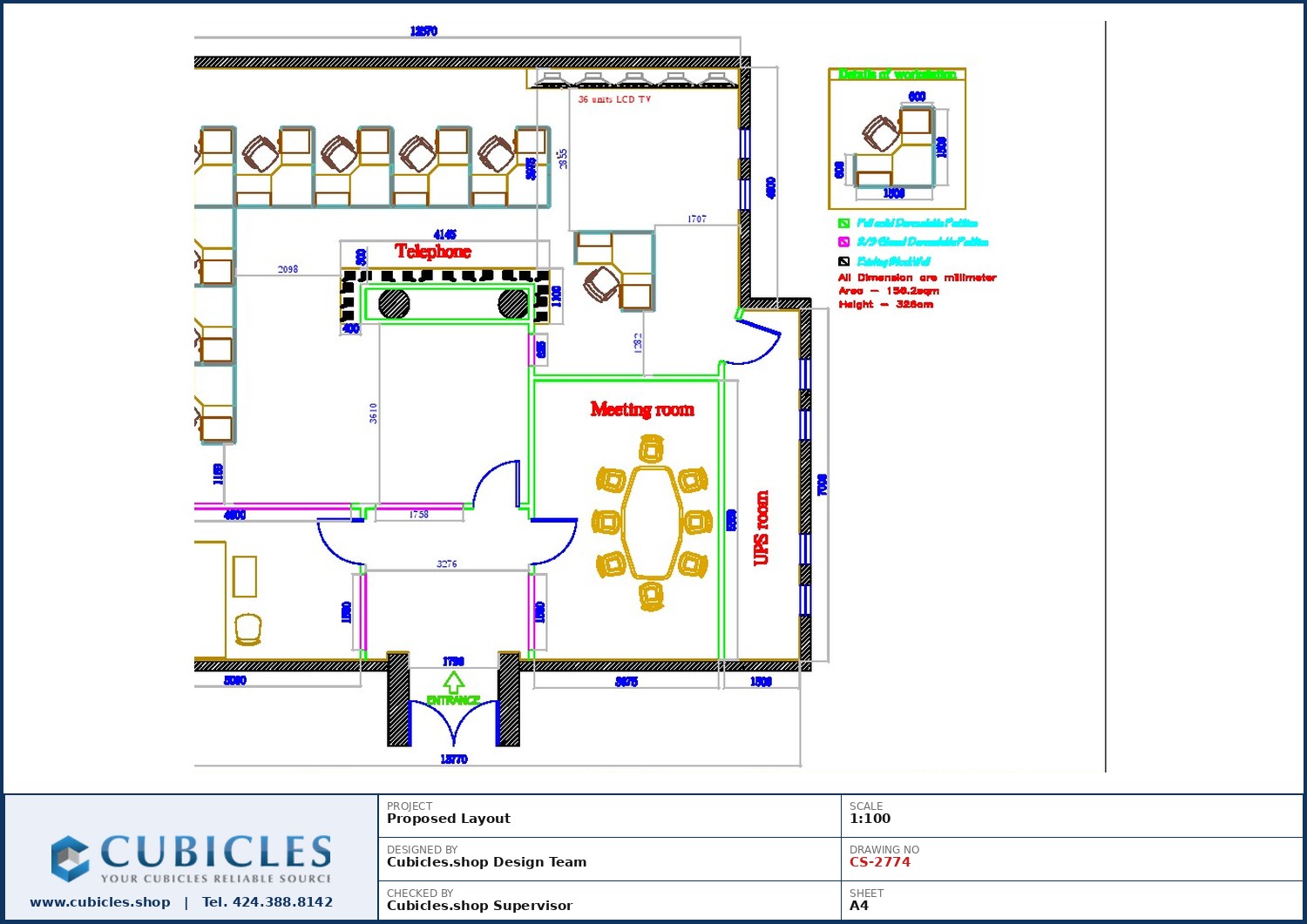

L-Shape Workstation Floor Plan & Cubicle Dimensions (CS-2774)

The L-shape is the workhorse of office cubicle layouts. This floor plan shows L-shape workstations arranged so each person gets a long primary work surface plus a return, without pushing the overall footprint out.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Panel glazing is used selectively in this plan — clear or frosted tops where light needs to travel, solid fabric where acoustic separation matters more.

Best suited to general office work, administrative teams, finance and any role that needs a generous primary surface plus a return for a second monitor or paperwork.

Send us your dimensions and we will produce a layout for your space at no charge. Cubicles Shop is a manufacturer-direct supplier of new office cubicles and modular workstations, with design support on every order.
