Departmental Office Cubicle Layout & Floor Plan Design (CS-2876)

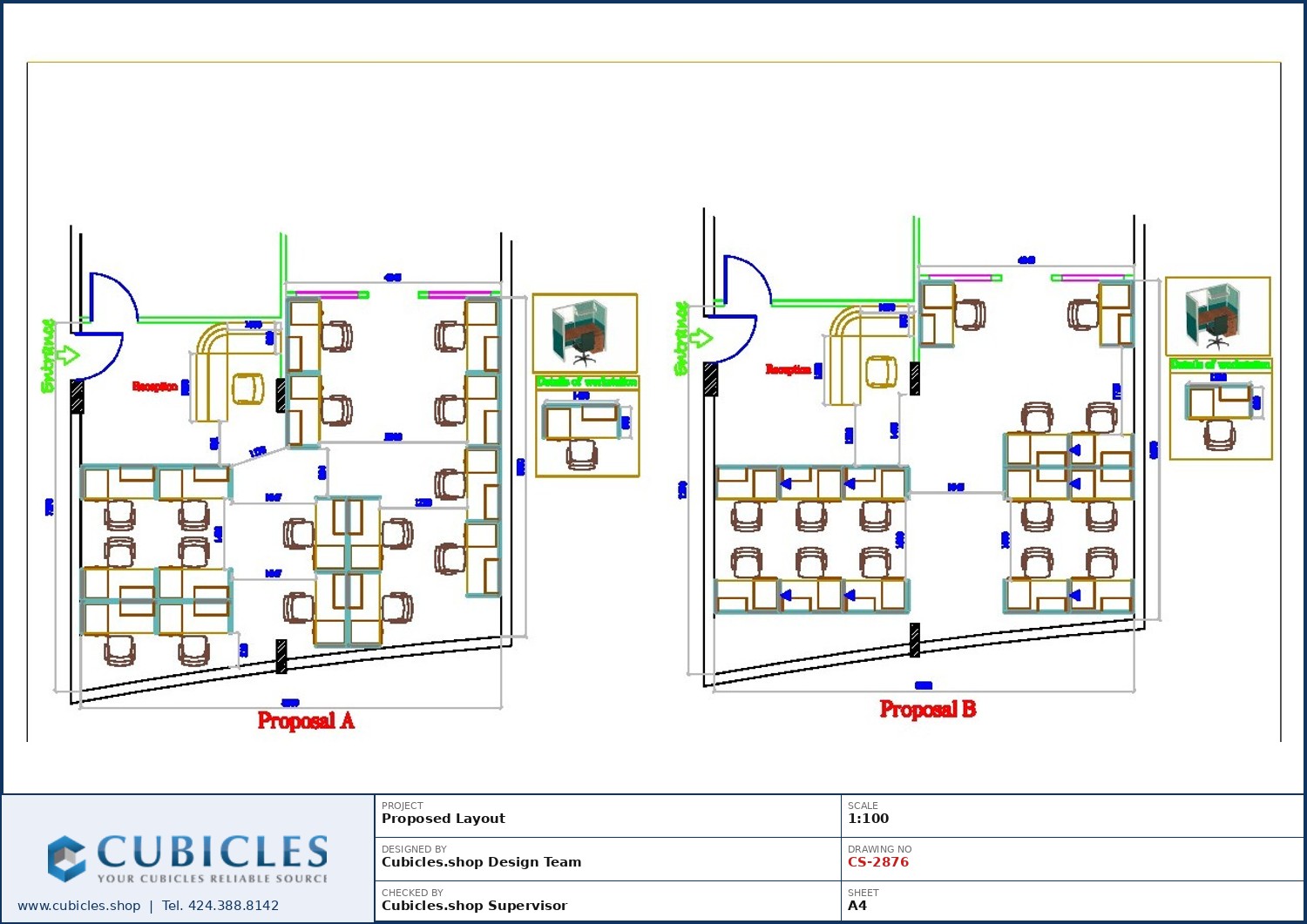

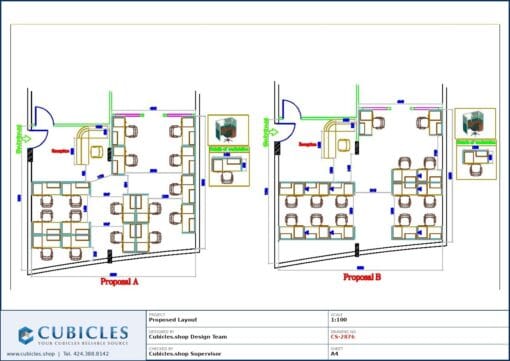

Larger offices rarely sit as one undifferentiated block. This departmental cubicle floor plan shows how separate teams can be zoned across a floor with their own cubicle groups, shared routes and clear boundaries between departments.

Panel heights, workstation sizes and finishes are all configurable. Common footprints include 5×5, 6×6 and 4×2 workstations, with panel heights typically between 51 and 66 inches depending on how much privacy and acoustic separation the space needs.

Power and data routing is planned with the layout, not after it — panel raceways carry cabling to each workstation so there are no trailing leads across walkways.

Best suited to corporate offices, multi-team floors and organisations that need each department identifiable on the plan.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
