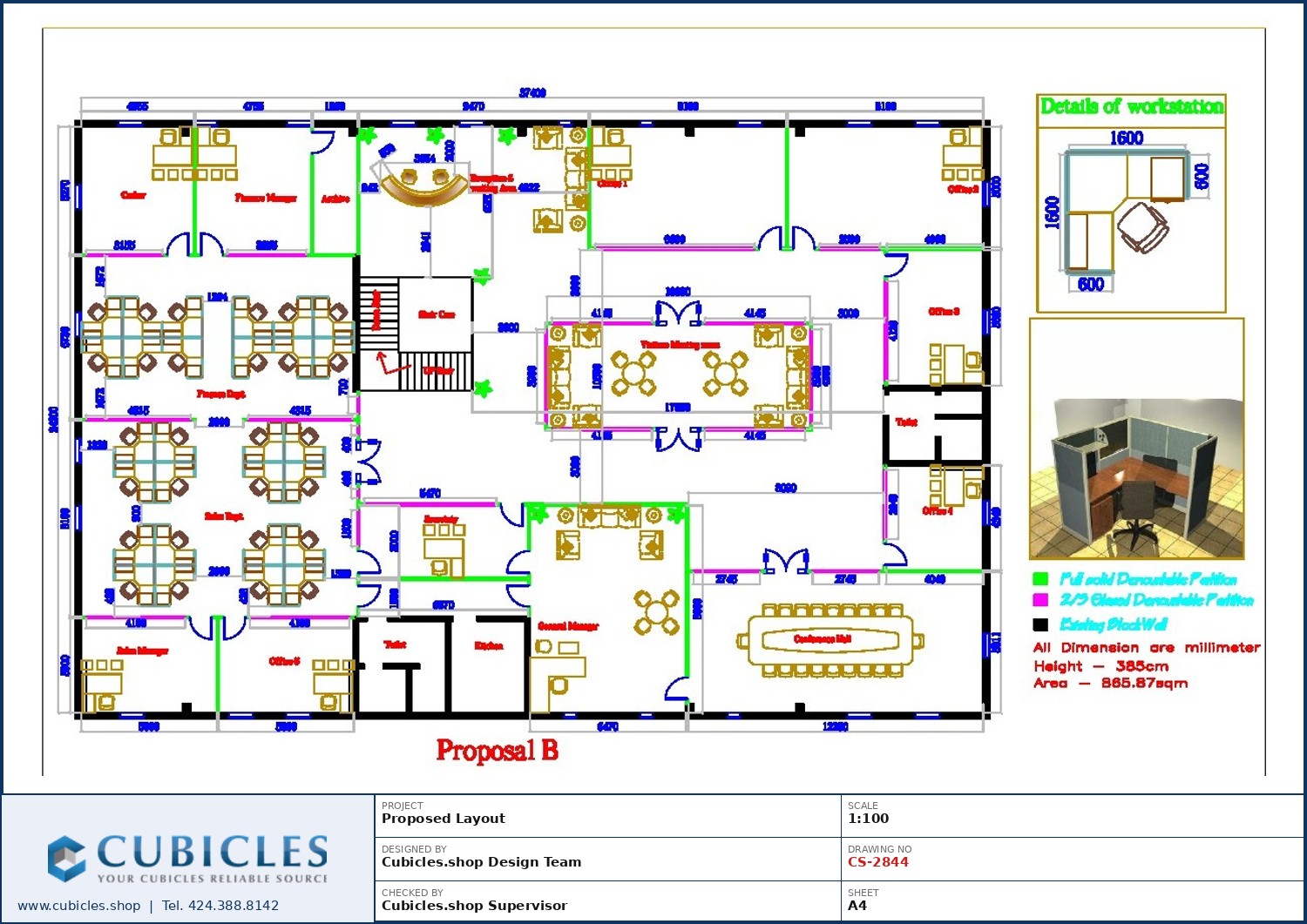

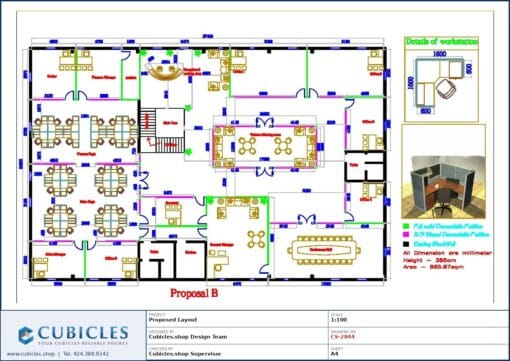

U-Shape Office Cubicle Space Planning & Layout Plan (CS-2844)

A U-shape workstation wraps three surfaces around the user. This cubicle layout shows how U-shape stations can be set out where people juggle paperwork, multiple monitors and reference material at once.

Nothing here is fixed. Workstation dimensions, panel heights, glazing, fabric and laminate finishes are chosen per project — 5×5 and 6×6 cubicles are the most common starting points, adjusted to suit the floor plate.

Storage is planned in from the start: mobile pedestals under the surface, overhead bins or shared filing at the end of each run, depending on the team.

Best suited to supervisors, design and engineering staff, accounts teams and anyone working across several surfaces at once.

Send us your dimensions and we will produce a layout for your space at no charge. Cubicles Shop is a manufacturer-direct supplier of new office cubicles and modular workstations, with design support on every order.
