Private Office Workstation Layout & Cubicle Dimensions (CS-2798)

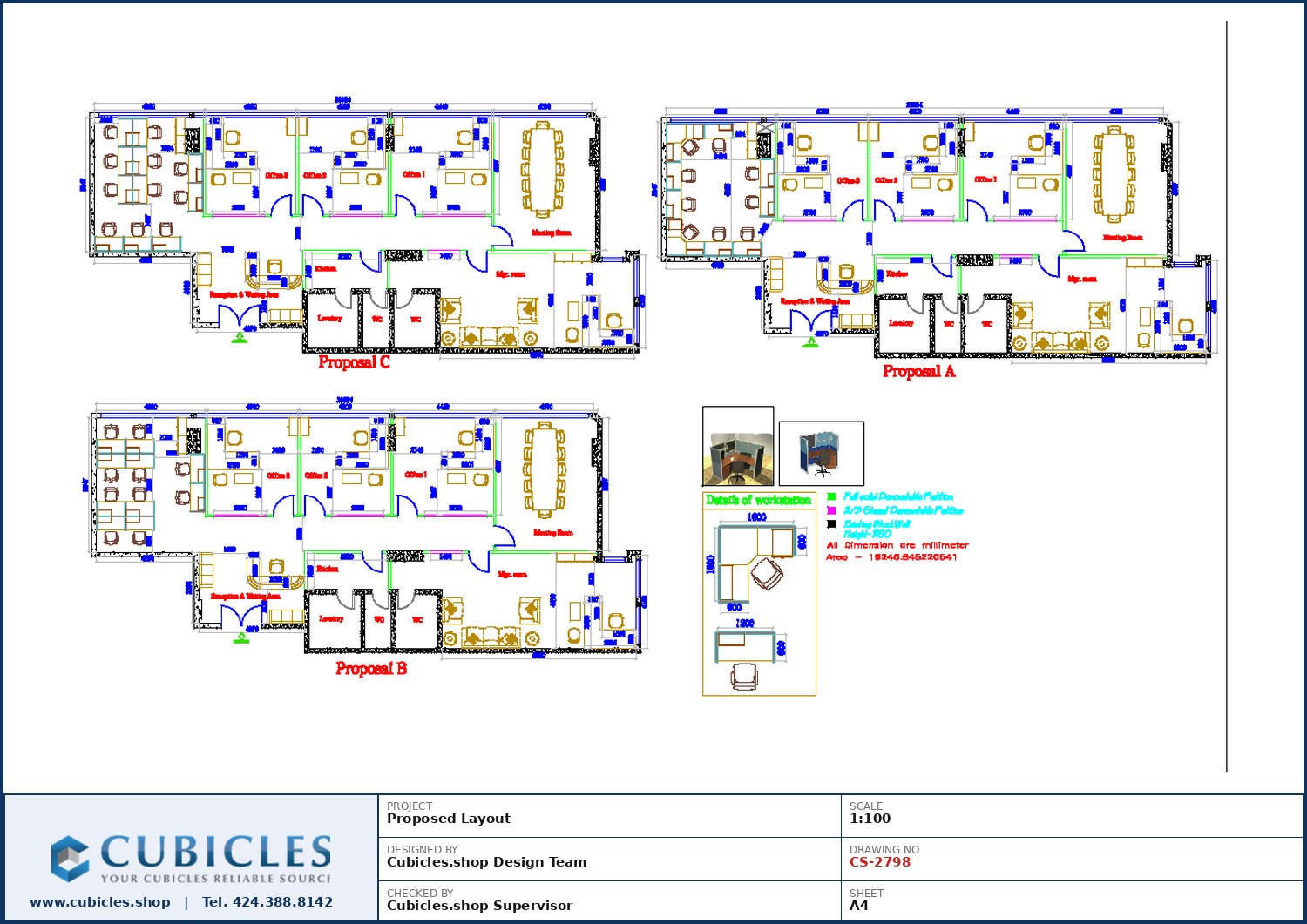

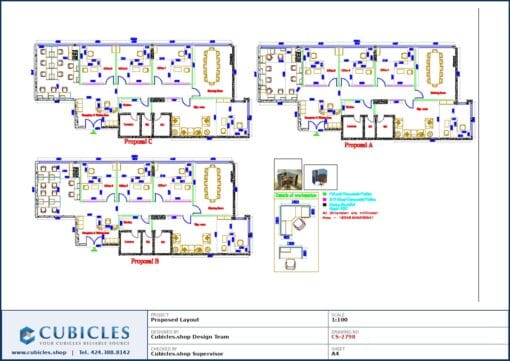

Some roles need walls. This private office cubicle layout shows enclosed and high-panel workstations placed for confidentiality and quiet, while staying part of the wider floor plan rather than cut off from it.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Storage is planned in from the start: mobile pedestals under the surface, overhead bins or shared filing at the end of each run, depending on the team.

Best suited to managers, HR, legal, finance and any role handling confidential conversations or sensitive documents.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
