Office Cubicle Layout & Floor Plan Design (CS-2763)

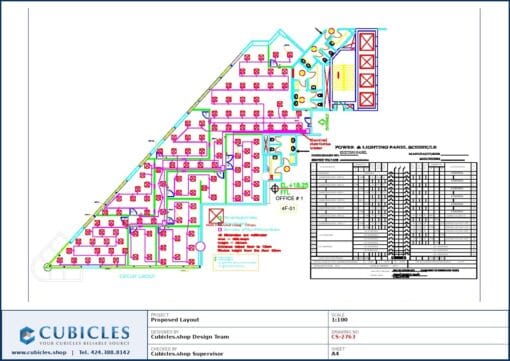

This office cubicle layout shows how modular workstations can be arranged across a floor plate — panel runs, workstation footprints, aisles and circulation resolved into one workable plan.

Panel heights, workstation sizes and finishes are all configurable. Common footprints include 5×5, 6×6 and 4×2 workstations, with panel heights typically between 51 and 66 inches depending on how much privacy and acoustic separation the space needs.

Power and data routing is planned with the layout, not after it — panel raceways carry cabling to each workstation so there are no trailing leads across walkways.

Best suited to general office environments, mixed teams and organisations planning a new cubicle installation or reconfiguring an existing one.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
