Office Cubicle CAD Layout Template & Floor Plan (CS-2750)

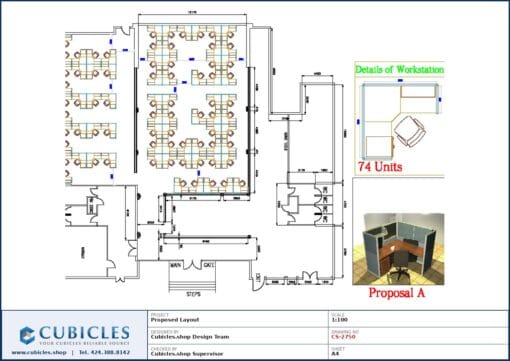

This is a CAD-drawn office cubicle floor plan, dimensioned and drawn to scale. It shows panel runs, workstation footprints and circulation in the form a contractor or facilities team can work from directly.

Sizes shown are a starting point, not a constraint. We regularly adapt layouts to 5×5, 6×6, 4×2 and custom workstation footprints, with panel heights set to match the privacy level each team needs.

Storage is planned in from the start: mobile pedestals under the surface, overhead bins or shared filing at the end of each run, depending on the team.

Best suited to contractors, architects, facilities managers and anyone who needs a dimensioned drawing rather than a concept sketch.

Cubicles Shop manufactures direct, with over 25 years of architectural and office furniture experience behind every plan. Space planning and layout design are $500, credited in full to your order — send us your floor dimensions and we will draw your space.
