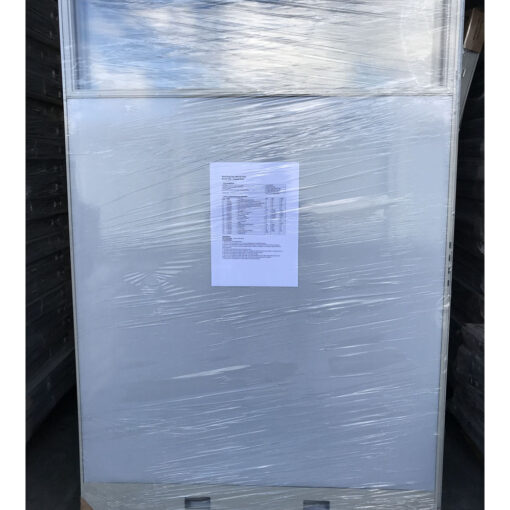

Glazed Wrapped Panel-4ft-51″H- Tall Panel-Self Distancing Panel-Privacy Screen
$290.00
Discover the glazed wrapped panel-4ft-51 h- — a premium wrapped panels designed for durability and value. Built to last with quality materials and thoughtful design. Perfect for customers looking for reliable performance and lasting results.
Frequently Asked Questions About glazed wrapped panel-4ft-51 h-
What makes this glazed wrapped panel-4ft-51 h- a good choice?
The glazed wrapped panel-4ft-51 h- is built with quality materials and practical design. It offers reliable performance for everyday use and comes from a trusted source. Customers choose it for the balance of durability, features, and fair pricing.
How long does shipping take?
We process orders quickly and ship via reliable carriers. Standard delivery typically takes 3-7 business days depending on your location. You will receive tracking information once your order ships so you can follow its progress.
Is there a warranty on the glazed wrapped panel-4ft-51 h-?
Yes, our glazed wrapped panel-4ft-51 h- comes with a standard manufacturer warranty against defects. We stand behind the quality of every product we sell. Contact our support team if you have any questions about warranty coverage or returns.
About this glazed wrapped panel-4ft-51h- tall
Looking for a reliable glazed wrapped panel-4ft-51h- tall? Our Glazed Wrapped Panel-4ft-51″H- Tall Panel-Self Distancing Panel-Privacy Screen is built with premium materials and attention to detail — perfect for customers who want quality, value, and style in one product.
Data Sheet For UD1/G/3651 FINAL
Brand: UD1 / Glazed Panel
SIZE & WEIGHT: Glazed Wrapped Panel
| Panel Size : W x D x H Imperial Dimension | 48″x2.48″x51″ |
| Panel Size : W x D x H Metric Dimension | 914x63x1067 MM |
| Aluminum Color | Powder Coated with RAL7044 |
| Alum Profiles Weight/total weight / Volume (METRIC) | 5.75 kg/16.3 kg/0.0819 cubic mt |
| 12.67 LB/35.934 lb/2.89 cubic ft | |
| Fabric Color | Beige| Brown |Blue |Grey |
PANEL COMPONENTS & PACKING:
| S/N | CODE | Description | QTY | SIZE | TOTAL |
| S/N | CODE | Intermediate MILL FINISH /17445 | 4 | 35” | 140” |
| 1 | MW0001 | Track /26567 (POWDER COATED WITH RAL 7044) | 3 | 1.5” | 4.5” |
| 2 | MW0002 | Track Cover /17442 (POWDER COATED WITH RAL7044) | 2 | 35” | 70” |
| 3 | MW0006 | Edge /17443 (POWDER COATED WITH RAL 7044) | 2 | 42” | 84” |
| 4 | MW0009 | Top Part /17441 (PWEDER COATED WITH RAL7044) | 1 | 35” | 35” |
| 5 | MW0010 | Aluminum angle for end cap | 4 | 1” | 4” |
| 6 | MW0051 | Glass Part/17444 | 4 pcs | 35”x12” | 94” |
| 7 | MW0007 | MDF (5)MM | 2 | 35”x35” | 2450” |
| 8 | MW0014 | MDF SMALL PART BACKSIDE | 6 | 1.5”X27” | 243” |
| 9 | MW1001 | Clear Float (5mm) Glass | 1 | 34”x11.25” | 382.5” |
| 10 | MW1002 | SPONGE (5)MM | 2 | 39”X39” | 3042” |
| 11 | MW0050 | TOP STEEL SPRING | 4 | 1 1/4X3” | 15” |
| 12 | MW0059 | BOTTOM STEEL SPRING | 8 | 1 1/4 | 10” |
| 13 | MW0060 | ADJUSTABLE LEG | 2 | – | 2 |
| 14 | MW0076 | ALUM STRAIGHT | 2 | 2” | 4” |
| 15 | MW0078 | FABRIC | 2 | 39”X39” | 3042” |
| 16 | MW0110 | STABLES 6MM (FABRIC/W/MDF) | 400 | 6 MM | 400 |
| 18 | MW0047 | SCREWS 8X1/2″ | 8 | 8X1/2” | 8 |
| 17 | MW1003 | SCREWS 6X1″ | 16 | 6X1” | 16 |
| 18 | MW1004 | SCREWS 6X1/2” | 24 | 6X1/2” | 24 |
| 19 | MW1005 | STABLES 10MM(MDF/W/MDF) | 240 | 10MM | 240 |
| 20 | MW0052 | CORNER CARTOON | 4 PCS | ||
| 21 | MW0077 | SHRINK NYLON |
Description:
Short description: Multi-function Glazed Wrapped Panel
Long description:
1- Twelve-inch (12”)Top Glazed Panel.
2- The Alum thickness varies from 1.2 to 3.2 mm depending on the profile code part.
3-The panels are covered with modified upholstery Fabric where it provides diversification of the sound signals (where it is perfect for the call centers and open areas). The fabric is installed on a thin layer of sponge (5mm) for sound absorption.
4- The Glass is clear float glass and its thickness is 5mm.
5- The bottom part has a track (cable management raceway), for electrical wiring, and punched in 2 locations for the sockets as per the American standard sockets / or the British standard sockets.
6- The side of the shutters has drilled holes to run the cables through.
7-The unit is of a double skin system where fabric can be dismantled from each side independently and can be replaced, without affecting the other side, all you need to dismantle the fabric part is a spatula.
8- The Glazed Wrapped Panel products are guaranteed for 5 years against manufacturing defects.
Frequently Asked Questions About glazed wrapped panel-4ft-51 h-
What makes this glazed wrapped panel-4ft-51 h- a good choice?
The glazed wrapped panel-4ft-51 h- is built with quality materials and practical design. It offers reliable performance for everyday use and comes from a trusted source. Customers choose it for the balance of durability, features, and fair pricing.
How long does shipping take?
We process orders quickly and ship via reliable carriers. Standard delivery typically takes 3-7 business days depending on your location. You will receive tracking information once your order ships so you can follow its progress.
Is there a warranty on the glazed wrapped panel-4ft-51 h-?
Yes, our glazed wrapped panel-4ft-51 h- comes with a standard manufacturer warranty against defects. We stand behind the quality of every product we sell. Contact our support team if you have any questions about warranty coverage or returns.
| Weight | 27 lbs |
|---|---|
| VOLUME (FT3) | 4 |
| Color Of Fabric / Melamine | Silver |
| TRIM COLOR | RAL9016 WHITE |
